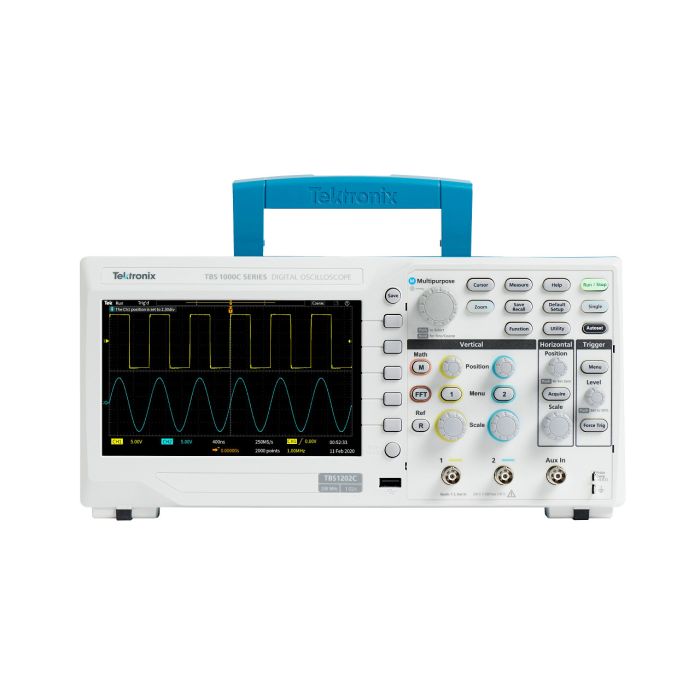

TBS1052C-EDU
TBS1052C-EDU
Tektronix
Digital Storage Oscilloscope: 50 MHz bandwidth, 1 GS/s sample rate, 2 Channel, 20Kpts record length for EDU
The TBS1000C Series Digital Storage Oscilloscope offers affordable performance in a compact design. It is designed to meet the needs of today's educational institutions, embedded design engineers, and maker community. The instrument includes a 7-inch WVGA color display with up to 1 GS/s sample rate, bandwidths from 50 MHz to 200 MHz and a five-year warranty.
The TBS1052C-EDU 2-channel oscilloscope enables you to streamline your lab experience with special teaching features.
For the student:
- HelpEverywhere provides on-screen tips that explain different instrument settings.
- Built-in oscilloscope handbook provides operating instructions and oscilloscope fundamentals.
For the instructor:
- Integrated courseware provides lab exercise guidance right on the display.
- Disable features like Automated Measurements, AutoSet, and Cursors to encourage learning and retention of fundamental concepts.
- Backed by Tektronix 5-year warranty (R5).
The instrument comes with an innovative courseware system that integrates the lab exercises with step-by-step instructions for use, by the students. HelpEverywhere® system provides useful tips and hints throughout the user interface, to make the instrument more approachable to a new user.
Key performance specifications
- 200 MHz, 100 MHz, 70 MHz, and 50 MHz bandwidth models
- 2-channel models
- 1 GS/s sample rate on all channels
- 20k point record length on all channels
- Advanced triggers include pulse, runt, and line triggers
- Five-year warranty
- 7-inch WVGA colour display with 15 horizontal divisions that shows 50% more signal
- 32 automated measurements
- Dual window FFT with simultaneous time and frequency domain views
- Trigger frequency counter
- Pan and Zoom capability
- Multi-language user interface with support for 10 languages in the user interface and front panel overlay
- Small footprint and lightweight
- Fanless design contributes to low-noise operation
Please note - this product is available only for qualified educational institutions. Ask a member of our team for details.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manufacturer Product Family | TBS1000C Digital Storage Oscilloscope |
| Key Features |
Connectivity
|
| Sample Rate | 1 GS/s |
| Record Length | 20 K points |
| Channels | 2 |
| Bandwidth Option | 50 MHz |
| Series | TBS1000C |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
