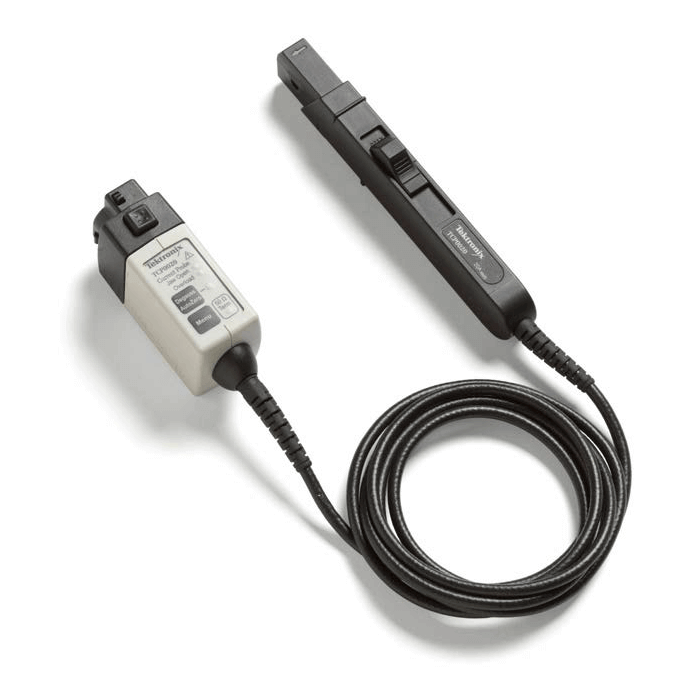

TCP0020
TCP0020
Tektronix
AC/DC current probe
The TCP0020 is a high-performance, easy-to-use AC/DC current probe designed for use with a variety of oscilloscopes. The TCP0020 is designed for direct connection to oscilloscopes with the TekVPI™ probe interface.
The Tektronix TCP0020 provides a maximum 20 ARMS measurement range, while These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today’s challenging current measurement needs.
Tektronix TCP0020 Highlights
- 20 ARMS maximum current capability
- 100 A peak pulse current capability
- Connects directly to oscilloscopes with the TekVPI™ probe interface
- Provides automatic units scaling and readout on the oscilloscope display
- One-button degauss and AutoZero control for ease of use
- Easy access to scope-displayed probe menu for probe setup control and operating status information
- Remote control capability through TekVPI oscilloscope
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | Current_Probes |
| Product Family | Current Probes |
| Key Features |
|
| Bandwidth | 3 Hz to 300 kHz |
| Whats Included |
|
| Applications |
|
| Rise Time | < 7 ns |
| Maximum DC Current | |
| Cable Length | 2 |
| Accessory Type |
