19020-4

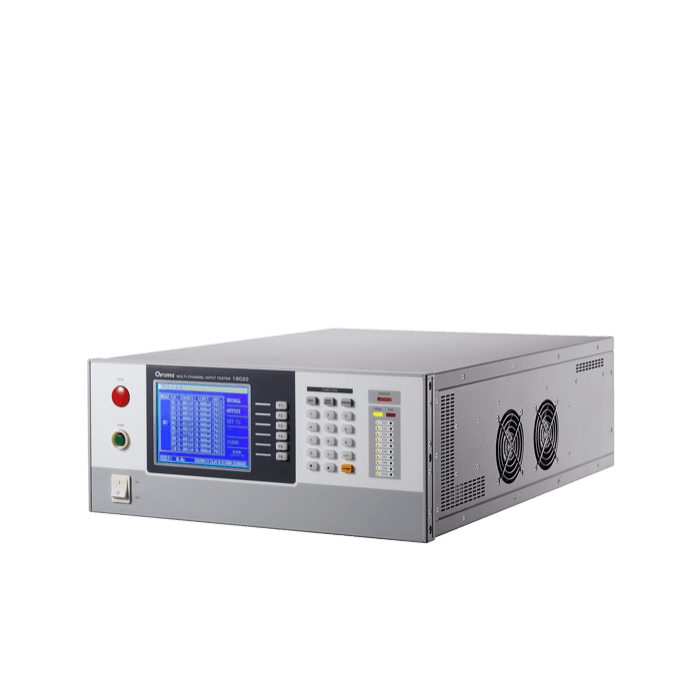

Chroma Multi-Channel Hipot Tester Model 19020-4

High Efficiency Hipot Test Solution

The hipot test is one of the major test items in electrical safety testing. All electrical components and products, including transformers, capacitors, power supplies, chargers, and home appliances, require hipot testing.

With more than three decades of experience in developing instruments for test and measurement, Chroma created the 19020-4 Multi-Channel Hipot Tester with a brand new architecture. It can measure the hipot leakage current of all channels at the same time and conduct tests on up to 100 DUTs simultaneously.

Chroma 19020-4 saves space on the production line by eliminating the need to purchase multiple hipot testers. Its one-time multichannel test increases the efficiency of electrical safety testing. It improves manufacturing efficiency and reduces testing risks for products that require only hipot testing.

Chroma 19020-4 also has powerful functions for Flashover detection and Open/Short Check. With several international patents, it is the best tool for regulatory electrical hipot tests as it not only offers reliable quality, but also creates a highly efficient test platform.

Key Features

• 10 channels in one device
• 10 sets of sync output and measurement
• ACWV/DCWV/IR 3-in-1 EST test
• Master/Slave control up to 10 units
• Programmable V-output and limits
• OSC (Open/Short Check)
• Flashover detection
• 5kVAC & 6kVDC hipot test
• 1MΩ~50GΩ insulation resistance test
• Standard RS-232/Handler/GPIB interfaces
• Large LCD panel
• Panel lock function
• CE mark
