17040E Regenerative Battery Pack Test System

Regenerative Battery Pack Test System

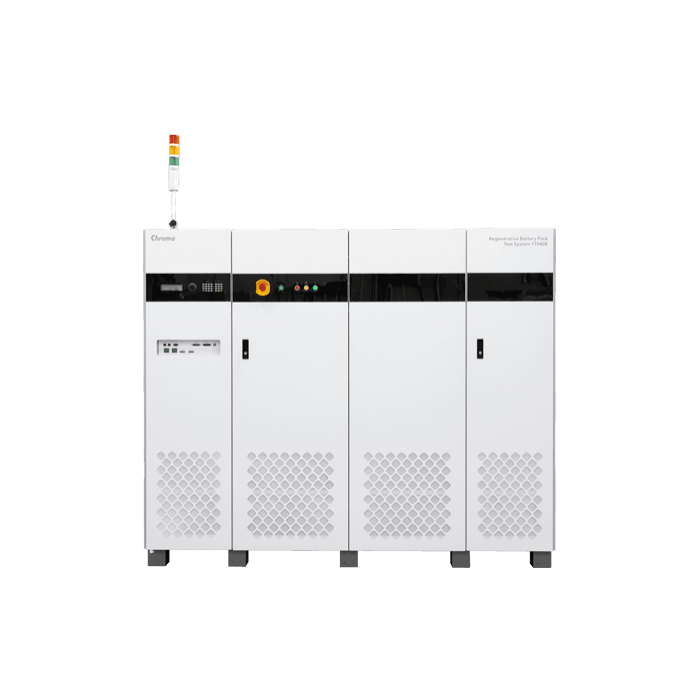

The Chroma 17040E Regenerative Battery Pack Test System is a high-precision system specifically designed for secondary battery module and pack tests. The energy recovery function greatly reduces power consumption during discharge, and ensures a stable power grid without generating harmonic pollution on other devices - even under dynamic charge and discharge conditions.

While traditional equipment dissipates waste energy as heat, Chroma 17040E can recycle the electrical energy discharged by the battery module back into the grid, thereby reducing energy waste and alleviating HVAC requirements.

 Key Features:

• Meets international standards for battery testing: IEC, ISO, UL, and GB/T, etc.
• Regenerative battery energy discharge (Eff. >92%, PF >0.99, I_THD <3%)
• Auto-ranges with multiple voltage and current ranges for optimal resolution
• High accuracy current/voltage measurement
  • ±(0.05% of range)
  • ±(0.02% of reading ± 0.02% of full scale)
• Current slew rate (10%-90%) Max speed: 1ms
• Dynamic (current/power) driving profile simulation tests for NEDC, FUDS, HPPC
• Test channel parallel function
• Test data analysis function
• Data recovery protection (after power failure)
• Automatic protection for abnormalities
• Battery simulator (option)
• High power test equipment
  • Voltage range: 5-1700V
  • Current range: 0-4800A
  • Power range: 0-1.6MW
• Customized integration functions
  • Integrated temperature chamber
  • BMS data analysis
  • Multi-channel voltage/temp. recording
