Keithley Instruments

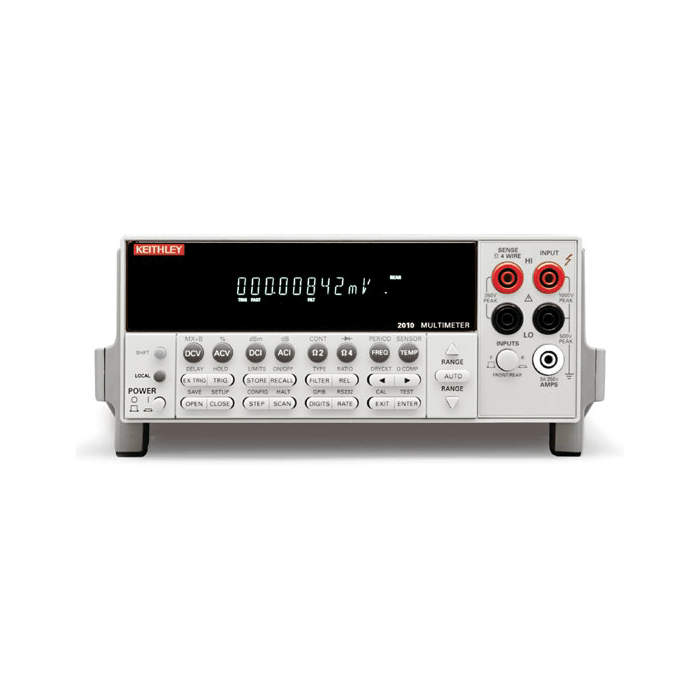

Keithley Low Noise Autoranging 7.5 Digit Multimeter with Scanning
The Keithley 7.5 digit 2010 Series Low Noise Multimeter combines cost-effectiveness and high resolution with the throughput and accuracy needed for high-speed DMM applications such as testing precision sensors, transducers, A/D and D/A converters, regulators, references, connectors, switches, and relays. Based on the same high-speed, low-noise A/D converter technology as the 2000, 2001, and 2002 Series, the Keithley 2010 adds four unique resistance measurement functions that make it ideal for characterising the resistance, linearity, or isolation of contacts, connectors, switches, or relays.
High Measurement flexibility
The Keithley 2010 has 15 built-in measurement functions, including DCV, ACV, DCI, ACI, 2WW, 4WW, dry circuit resistance, temperature (with either thermocouples or RTDs), frequency, period, ratio, continuity measurement, and diode testing. This multi-functional design minimises added equipment costs.
Creating a self-contained multipoint measurement solution is as simple as plugging a 2000-SCAN or 2001-TCSCAN scanner card into the option slot in the 2010’s back panel. This “plug-in” approach eliminates the need for a separate scanner and significantly reduces programming and setup time in applications involving a limited number of test points. For larger applications, the Keithley 2010 is compatible with Keithley’s Series 7000 switch matrices and cards.
Unique Resistance Measurement Functions
Characterising the resistance, linearity, or isolation of contacts, connectors, switches, or relays completely and efficiently demands an uncommon combination of ohms measurement capabilities. The Keithley 2010 multimeter offers:
-
Low-power ohms measurement mode
Low-level resistance measurements can be made with source current as low as 100µA, an order of magnitude lower than is possible with other DMMs, so device self-heating is minimised. Among other benefits, this low-power measurement capability makes the Keithley 2010 multimeter suitable for end-of-life contact testing per ASTM B539-90. -
Dry circuit test function
When measuring contact and connector resistances, it is important to control the test voltage carefully in order to avoid puncturing any oxides or films that may have formed. A built-in clamp limits the open circuit test voltage to 20mV to ensure dry circuit conditions. -
Offset compensated ohms function
This function eliminates thermal effects that can create errors in low-level resistance measurements in system environments. -
Extended ohms measurement capability
The Keithley 2010 DMM provides a 10W range for more precise measurements of low resistances
Contact our team for stock availability and product options.
2010 Specifications
- 7½-digit resolution
- 100nV rms noise floor
- 7ppm DCV repeatability
- Built-in 10-channel scanner mainframe
- Dry circuit and low power measurement mode
- 15 measurement functions including support for rTD and thermocouple temperature measurements
- Built-in ratio measurement function
- GPIb and rs-232 interfaces
| Attribute | Value |
|---|---|
| Features |
|
| Display | Digital |
| Connectivity | GPIB / RS232 |
| Maximum DC Current | |
| Digits | |
| Maximum AC Voltage | |
| Whats Included |
Model 1751 safety Test leads, user Manual, service Manual |
| Dimensions | 89mm × 213mm × 370mm |
| Product Type |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
