HAEFELY AG

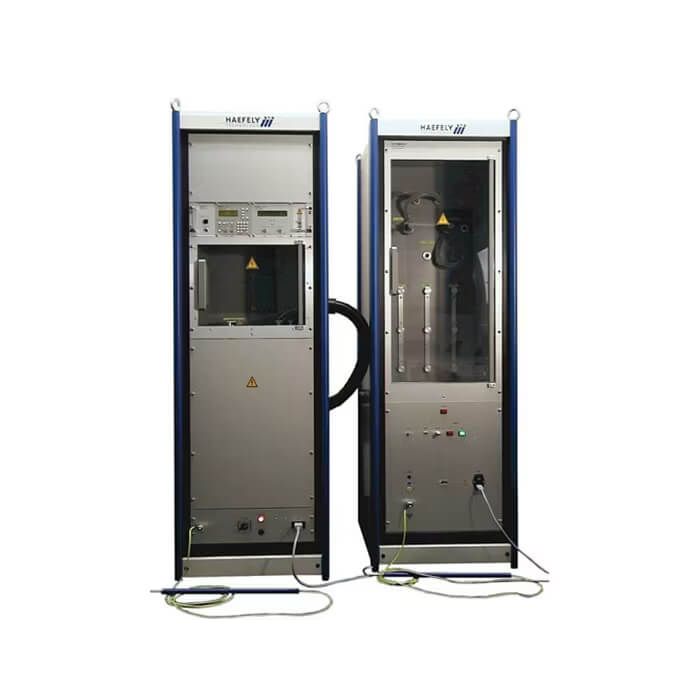

PSURGE 30.2 - Modular 30 kV/30kA Surge Test System
Test System For Performing High-Energy Surge Tests
Energy surges are generated by atmospheric lightning in power circuits. A surge is characterised by high energy and relatively fast front times.
The Haefely PSURGE 30.2 is designed to generate a wide variety of surge impulses. Impulse modules can be exchanged quickly, allowing PSURGE 30.2 to be used for different applications. The impulse module type is detected by the system software. The built-in microprocessor control unit serves as a user interface and controls all the internal functions.
Key Features
- Up to 30 kV impulse voltage
- Up to 30 kA impulse current
- Automatic polarity switching
- Peak voltage and current monitoring
- Integrated large test cabinet
- Remote control option
- Specifically designed to meet and exceed the requirements of IEC, EN, ITU and ANSI tests for power line applications
- Modular system - the impulse circuit can be changed quickly and easily by the user, and only one generator is needed for up to four impulse shapes
- Safe and easy - the interlocked test cabinets allow operators to test safely and easily
- A Warning lamp indicates the system status clearly
For more information about this product, or for expert EMC advice and guidance, start a technical conversation with a member of our team on 0330 313 3220.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Included Accessories |
|
| Applications |
Combination wave according IEC 61000-4-5 |
