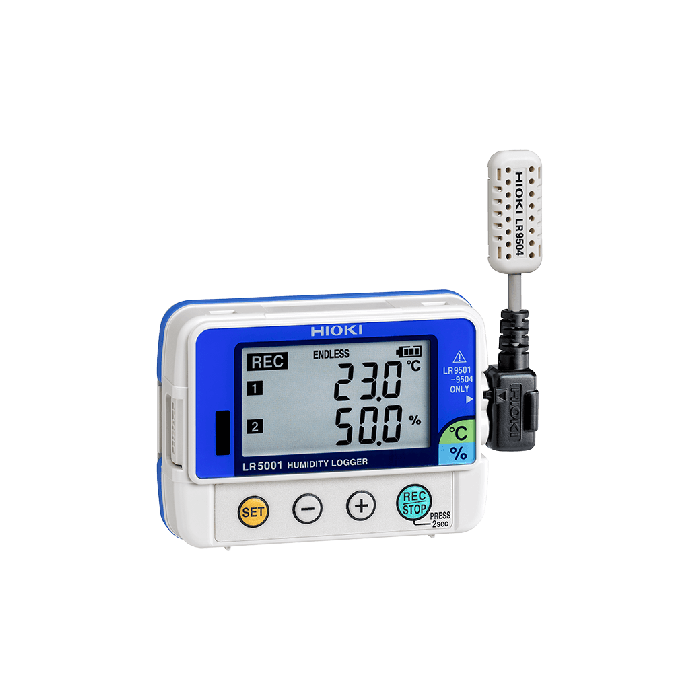

LR5001

LR5001

Hioki

Humidity Logger

Record Temperature and Humidity Simultaneously with Dual-Channel Data Logger

Hioki compact 1 or 2-channel data loggers feature a 60,000 data set/channel memory to measure temperature, humidity, voltage or instrumentation signals. The LR5001 logs temperature and humidity over 2 channels in as fast as 1 second intervals.

Key Features

  • Easily mount the light-weight, pocket-sized loggers in tight spaces
  • Easy-to-see dual display
  • Transfer data to PC even during recording(*1)
  • Replace batteries while recording (30 second limit) (*2)
  • 7 times the memory capacity than predecessor (Record 60,000 data per channel)
  • Record without missing fluctuations in STAT mode
  • Measurement data is preserved even after the battery dies
  • Worry-free backup preserves recorded data even if a new measurement is started by mistake
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Included Accessories LR6 (AA) Alkaline battery (built-in internal) × 1, Humidity Sensor LR9504 × 1, Instruction manual × 1, Operation guide × 1, Kickstand × 1
Interfaces Infrared optical communications with LR5091, LR5092-20
Measurement Items Temperature 1 ch and Humidity 1 ch (Requires included or optional humidity sensor)
Measurable Range Temperature: -40.0°C to 85.0°C, Humidity: 0 to 100% RH at sensor environment
Measurement accuracy

[Temperature] : ±0.5 °C (main unit + sensor accuracy, at 0.0 to 35.0 °C)
[Humidity] : ±5 % rh (main unit + temperature / humidity sensor LR950x combination, at 20 to 30 °C / 10 to 50 % rh)
Note: Basic accuracy is typical value, refer to the detailed catalogue

Recording

Modes
Instantaneous recording: at every recording interval
Statistical value recording: Measure at one second intervals, and record the instantaneous, maximum, minimum, and average values within every recording interval

Methods
One-time recording: Stop recording when the memory capacity is full
Endless recording: Continue recording even when the memory capacity is full (old data is overwritten)
Start: Logger button operation or scheduled time
Stop: Logger button operation or scheduled time, or auto-stop when the memory capacity is full (at one-time recording)

Power source LR6 (AA) Alkaline battery × 1, Battery life: Approx. 3 months (Instantaneous recording, with 1-minute interval and auto power saving, at 20 °C), Approx. 20 days (Instantaneous recording, with 1-second interval at 20 °C)
Dimensions and Weight 79 mm (3.11 in) W × 57 mm (2.246 in) H × 28 mm (1.10 in) D, 105 g (3.7 oz)
Storage Capacity Instantaneous value mode: 60,000 data/ch, Statistical value mode: 15,000 data/ch
Recording Interval 1 to 30 sec., 1 to 60 min., 15 selections
Other Functions Always backs up last recorded data; backs up recorded data and setting conditions when battery power is low Note: After batteries are replaced within 30 seconds, recording resumes automatically (Recording is interrupted during battery replacement)
Waterproof and Dust-proof IP54 (EN60529) (with sensor connected, but not including sensor tip)
More Information
Attribute Value
Data Sheet Click here to view
