Hioki
LAN Cable HiTester
Easily Identify the Location of LAN Cable Wire Breaks

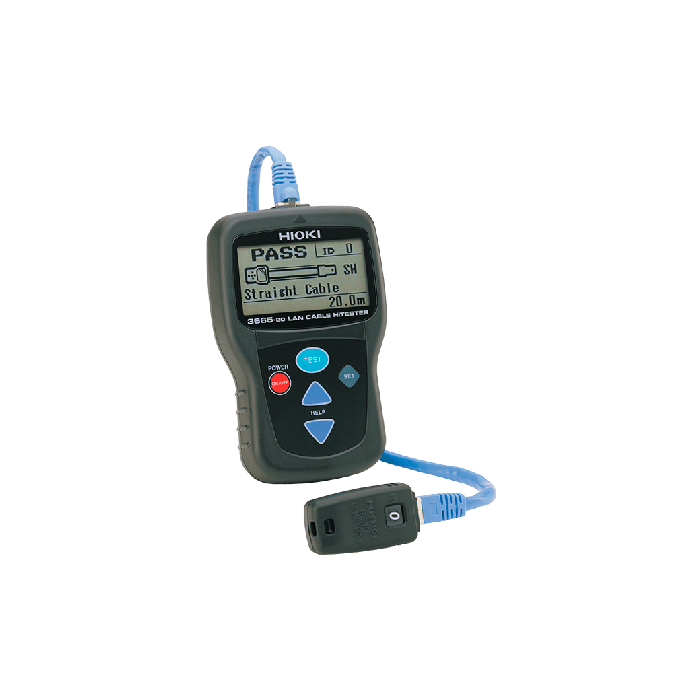

The Hioki 3665 is a handheld LAN cable tester to easily test wire map, measure cable length and identify twisted-pair cables, and is useful for verifying connections after installing connectors on cables. Optional terminators that facilitate easy identification of multiple cables make the LAN cable tester especially convenient for testing cables in working networks in the event of faults caused by open- or short-circuited cable wiring.
Key Features
- Wire map check: Detect split pairs with wiring check
- Cable length: Get NVP-Enhanced measurement accuracy
- Direction check: Identify up to 21 cable destinations
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Power Supply | LR6 (AA) alkaline battery ×2, 1.4 VA max., Continuous use : 50 hr (at measurement interval of 1 minute) |
| Dimensions and Weight | 85 mm (3.35 in)W × 130 mm (5.12 in)H × 33 mm (1.30 in)D, 160 g (5.6 oz) (without batteries) |
| Included Accessories | Terminator 9690 ×1, Carrying case ×1, LR6 (AA) alkaline battery ×2, Instruction manual ×1 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
