LR8531

This product is available in 5-7 weeks

15-Channel Wireless Logger Module for Voltage, Temperature and Resistance, 10 ms

Key Features

• Autonomous operation with wireless data transfer and battery option
• Wireless data transmission to LR8450-01 Data Logger
• 15 input channels for DC voltage, temperature and resistance (push-button type terminal block)
• 10 ms update interval
• A/D resolution: 16 bits
• Voltage: 9 ranges, from ±10 mV to ±100 V and for 4-20 mA signals

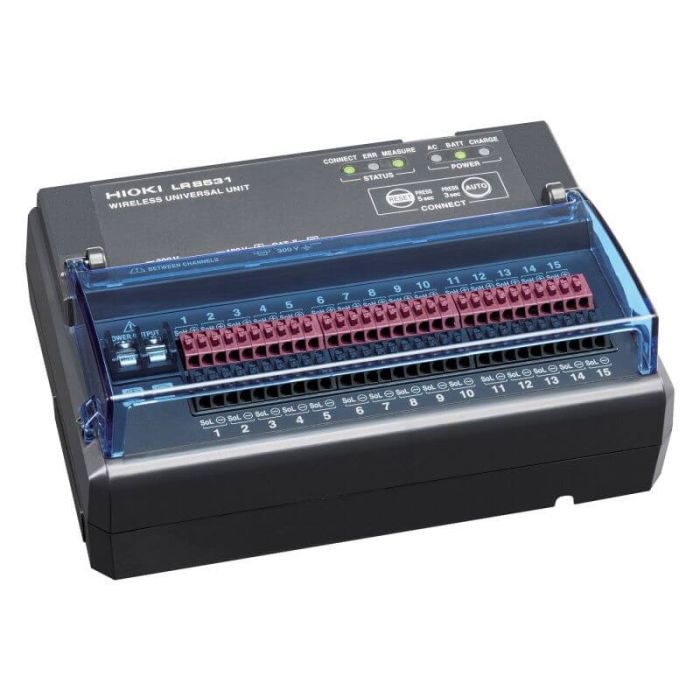

The LR8531 Wireless Universal Module is a 15-channel measurement module for the LR8450-01 Wireless Data Logger. Up to seven LR8531 modules can be connected to a single LR8450-01, allowing users to record and transfer data via wireless LAN of up to 105 channels in a single device. By combining the LR8450-01 with seven LR8531 and four U8551 plug-in modules the total setup can be extended to up to 165 channels.

This module supports precise DC voltage measurements with a direct input capacity of up to 100 V. Input signals are connected to the module through a spring-cage terminal block, providing a quick and secure, vibration-resistant connection. Its 300 V isolation to earth and between channels ensures safe and reliable operation.

Additionally, the LR8531 can perform resistance measurements. Four-wire measurements are available in four selectable measurement ranges (10 Ω, 20 Ω, 100 Ω, and 200 Ω) with an accuracy of 0.1%, ensuring high-precision results for various applications.

The LR8531 can also measure temperature using thermocouples or RTDs (resistance temperature detectors) of the types Pt100, Pt1000, and JPt100. Supported thermocouple types include K, J, E, T, N, R, S, B, and C. The module can also capture humidity, making it ideal for versatile applications from environmental monitoring to the evaluation of material properties.

Its compatibility with various thermocouple and RTD types allows flexibility for diverse thermal analysis tasks in research, industrial, and environmental settings. Each channel can be configured individually, giving users the freedom to tailor the setups to their specific testing requirements.

With a fast update interval of 10 ms and 16-bit A/D resolution, the LR8531 delivers high precision data acquisition. The module offers nine measurement ranges, from ±10 mV to ±100 V, ensuring accurate readings across a variety of applications. To measure 4-20 mA signals, a 250 Ω shunt resistor can be used with the 1-5 V range, adding to the module's adaptability.

The LR8531 features wireless LAN capability, enabling seamless data transmission to the LR8450-01 Wireless Data Logger for real-time monitoring and analysis on its LCD display. Its compact design makes it ideal for installation in tight or hard-to-reach spaces. Additionally, the module offers flexible power options, supporting the use of both an AC adapter and an optional battery pack for versatile setup configurations.

This wireless module comes with an AC adapter (Z1008) and a mounting plate with screws, allowing the module to be securely attached to a wall or other flat surface.
