LR8536

This product is available in 5-7 weeks

5-Channel Wireless Logger Module for Current Sensors, 1 ms

Key Features

• Individual scaling for each current sensor
• Current logging from 100 µA to 2 kA DC in one device
• Up to 35 channels current logging with 1ms update interval
• High-voltage Electric Vehicle (EV) battery current logging and low power circuit current logging possible with a single device
• Compact size and wireless capability, perfect for use in confined spaces
• 5 input channels with individual signal conditioning
• 1 ms simultaneous update interval
• Battery-powered wireless operation in tight spaces
• Operating temperature -20 oC to 55 oC
• Up to 7 modules can wirelessly connect to one LR8450-01 Data Logger
• Can be combined with a large variety of current sensors from 2 A to 6000 A

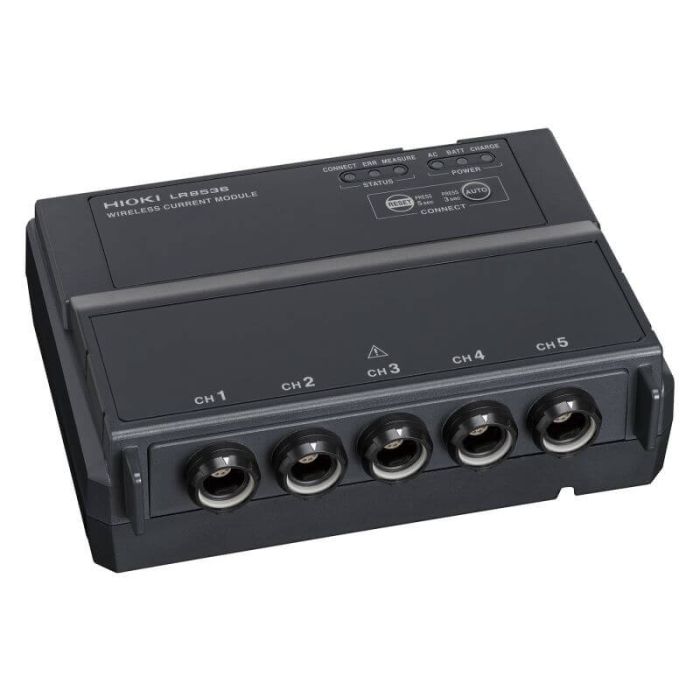

The LR8536 Wireless Current Module is the interface between up to 5 clamp-on current sensors and the LR8450-01 Data Logger. Each current sensor input has its own signal conditioning which makes it possible to have individual scaling and simultaneous 1 ms recording. The module is exclusively designed to add current logging functionality to the highly versatile LR8450-01 Data Logger. Up to seven LR8536 modules can be connected wirelessly to a single LR8450-01 Data Logger.

The module can be used with the ultra-compact yet high-precision current sensors CT7812 and CT7822 as well as with a variety of other HIOKI current sensor types, reaching from 2 A to 6 kA. These can be used in any combination in accordance with the application and test requirements, providing extended usability of the data logger. All temperature-compensated HIOKI current sensors with a PL14 connector are suitable to be used in combination with the new LR8536 wireless current module.
