U8556

This product is available in 5-7 weeks

Key Features

• Individual scaling for each current sensor
• Current logging from 100 µA to 2 kA DC in one device
• Up to 20 channels precision current logging with 1 ms update interval
• High-voltage Electric Vehicle (EV) battery current logging and low power circuit current logging possible with a single device
• 5 input channels with individual signal conditioning
• 1 ms simultaneous update interval
• Operating temperature -20 oC to 55 oC
• Up to 4 modules per LR8450 Series Data Logger
• Can be combined with a large variety of current sensors from 2 A to 6000 A

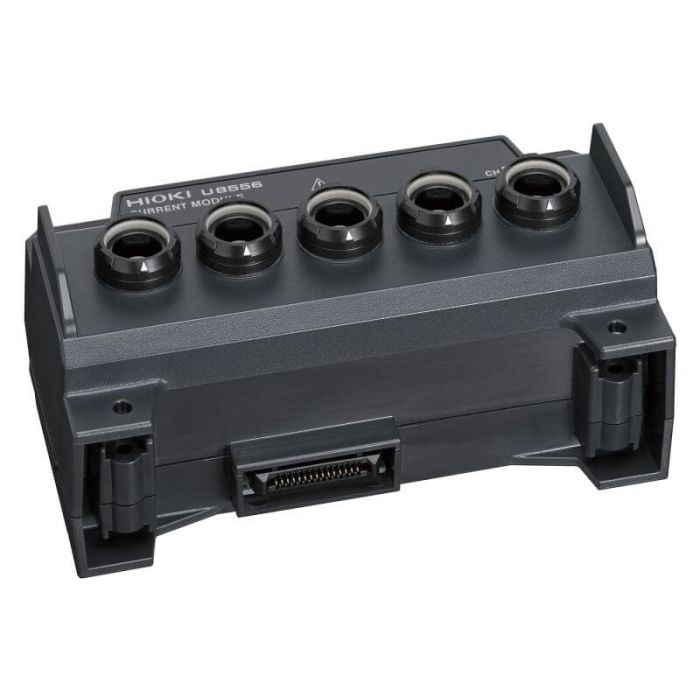

The U8556 Current Module is the interface between up to 5 clamp-on current sensors and the LR8450 Series Data logger. Each input channel has its own signal conditioning which enables individual scaling and simultaneous 1 ms recording. It is exclusively designed to add current logging functionality to the highly versatile LR8450 Series Data Loggers. Up to four U8556 modules can be connected to a single LR8450 Series Data Logger.

The module can be used with the ultra-compact yet high-precision current sensors CT7812 and CT7822 as well as with a variety of other HIOKI current sensor types reaching from 2 A to 6 kA. These can be used in any combination in accordance with the application and test requirements, providing extended usability of the data logger. All temperature-compensated https://www.hioki.com/euro-en/products/multichannel-data-loggers/multichannel/id_1266366 HIOKI current sensors with a PL14 connector are suitable to be used in combination with the new U8556 Current Module.
