EP-600, 100 kHz – 9.25 GHz, 0.14 – 140 V/m
EP-600
Narda Safety Test Solutions
Wideband Electric Field Probes
EP-600, 100 kHz - 9.25 GHz, 0.14 - 140 V/m

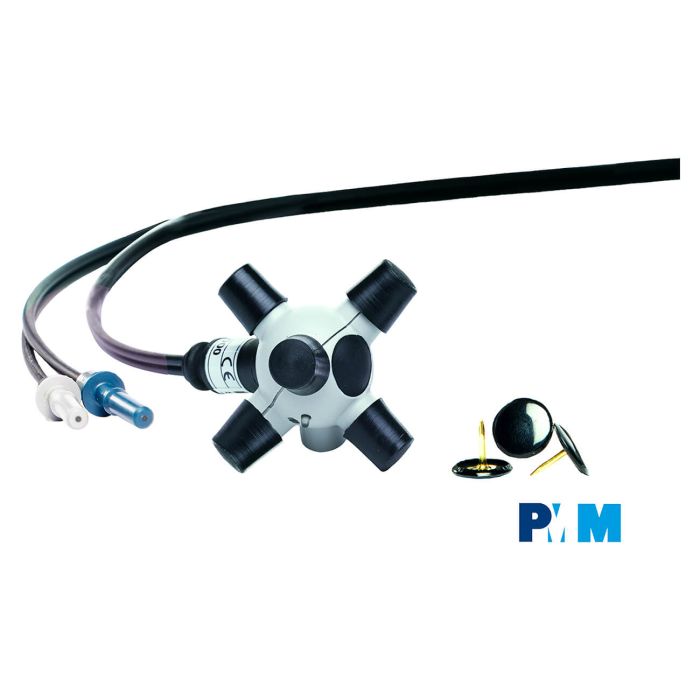

The EP-600 Probe represents the core of versatility and precision in the realm of electric field sensing. Characterized by their exceptionally small-sized spherical symmetrical configuration, this probe redefines the standard for miniature and optical communication in broadband sensors. Their lightweight and miniaturized electronics, coupled with outstanding RF characteristics, establish the EP-600 as the go-to solution for a myriad of applications.
Whether deployed in EMC/EMI testing chambers, TEM/GTEM cells, biology laboratories, or materials research facilities, these probes excel in delivering fast and accurate measurements. Their design ensures negligible or minimum interference with the field under measurement, guaranteeing reliable and precise results in various environments.
Moreover, the EP-600 offers the convenience of accredited calibration upon request, providing users with additional assurance of measurement accuracy and reliability. From stringent industrial standards to cutting-edge scientific research, these probes stand ready to meet the diverse needs of professionals across different fields.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 9,25 GHz |
| Sensors | Six monopoles |
| Flatness | Frequency correction OFF 1 to 150 MHz: 0,8 dB 0,5 to 6000 MHz: 1,6 dB 0,3 to 7500 MHz: 3,2 dB Frequency correction ON, typical 0,3 to 7500 MHz: 0,4 dB |
| Dynamic Range | 0,14 to 140 V/m 60 dB single range |
| Overload | 300 V/m |
| Operating Temperature | -10 °C to + 50 °C |
| Dimensions | 53mm |
| Weight | 23 g |
| Internal Battery | 3V, 5 mA/h, Li-Mn rechargeable |
| Resolution | 0,01 V/m |
| Measurement Mode | X-Y-Z axis simultaneous sampling |
| Sampling Rate | 22 to 0,03 samples/s depending on filter settings |
| Digital Filtering | Low-pass 2,3 to 28 Hz; 80 dB notch 50/60 Hz |
| Operation Time | 100 hours @ 0,4 S/s, 28 Hz filter |
| Recharging Time | 48 hours for full operation time Partial charging allowed, e.g.: 8 hrs rech. = 12 hrs operation @ 5 S/s 1 hr rech. = 5 hrs operation @ 0,4 S/s |
| Internal Data Memory | Serial no. - Calibration factors & date Firmware version |
| Communication | Bidirectional fibre optic link |
| Fibre Optic Connector | HFBR-0500 |
| Fibre Optic Length | 10 m, standard 20/40 m options |
| Fibre Optic To PC | Fibre optic to RS232 converter RS232 to USB converter |
| PC Software | Displays field, temperature, battery, sampling, filters, averaging, frequency setting, manual data logging as text file |
| Temperature Reading Resolution | 0.1 °C |
| Battery Voltage Reading Resolution | 10 mV |
| Probe Holder Tip | 1/4 20 UNC female |
