DSOX3024G

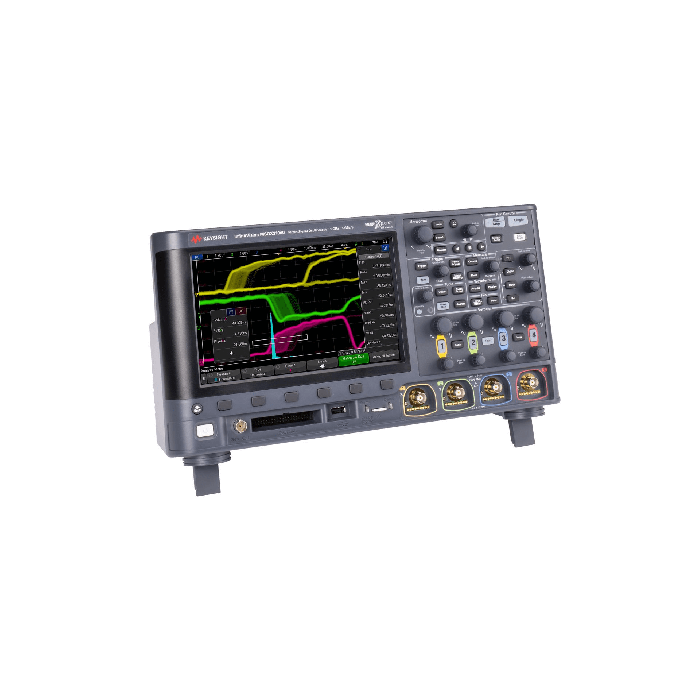

200 MHz, 4 Analogue Channel DSOX3024G Oscilloscope

The InfiniiVision 3000G X-Series Oscilloscopes with bandwidth models ranging from 100 MHz up to 1 GHz offer high-end technology in a small form factor. With an intuitive touch user interface, industry-leading waveform update rate, zone trigger, and 8 new standard features, you can capture and isolate elusive glitches and anomalies not possible on other oscilloscopes.

InfiniiVision 3000G X-Series: The Best in Usability Deserves the Best Features

Meet the new generation of Keysight’s industry-leading InfiniiVision X-Series Oscilloscopes. With the best in usability, a comprehensive front panel with quick access buttons, easy-to-use touch operation or mouse-based control through direct connection or web-based UI, the InfiniiVision 3000G X-Series oscilloscope enables you to work in whatever way is best for you. Keysight’s InfiniiVision 3000G X-Series Oscilloscope comes in 2-channel models, 4-channel models, and Mixed-Signal Oscilloscope with bandwidths ranging from 100 MHz up to 1 GHz. All models are enhanced with standard features that you would typically expect to pay extra for including:

• Powerful triggering and decoding serial buses including I2C, SPI, UART/RS232/RS485, I2S, and USB-PD
• High-performance mask and measurement limit testing enabled in hardware
• Frequency response analysis (Bode plots)
• Waveform & measurement histograms
• Built-in function/arbitrary waveform generator
• HDTV video analysis
• LAN/VGA I/O communication
• PathWave BenchVue Oscilloscope software for control, automation, and offline analysis

Standard segmented smart memory allows you to capture longer periods of time at higher sample rates

Acquisition memory size is an essential oscilloscope specification because it determines sustainable sample rate and the amount of time you can capture in a single acquisition. In general, longer memory is better. However, no memory will always be long enough to capture all the signals you need, especially when capturing infrequent anomalies, data bursts, or multiple serial bus packets.

Segmented memory acquisition lets you selectively capture and store important signal activity without capturing unimportant signal idle time. In addition, it provides a time stamp of each segment relative to the first trigger event to enable analysis of the frequency of the event. Segmented memory comes standard on the InfiniiVision 3000G X-Series oscilloscope.

Hardware-based serial decode & triggering makes easy work of low-speed serial buses

Keysight InfiniiVision Oscilloscopes, including the new 3000G X-Series, use hardware-based serial protocol decoding. Most other vendors use software post-processing techniques to decode serial packets⁄ frames, and therefore have slow waveform and decode capture rates and could miss critical events and errors due to a long dead-time. Faster decoding with hardware-based technology enhances the probability of capturing infrequent serial communication errors.
