MSOX3012G

MSOX3012G

Keysight Technologies

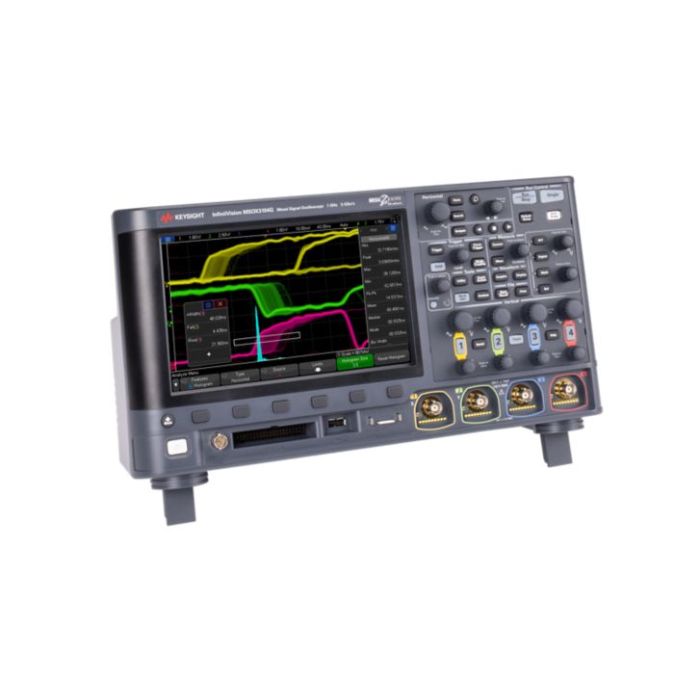

InfiniiVision 3000G X‑Series 100MHz Mixed Signal Oscilloscope, 2 Analogue and 16 Digital Channels

The Best in Usability Deserves the Best Features - Meet the new generation of Keysight’s industry-leading InfiniiVision X-Series Oscilloscopes. The Keysight InfiniiVision X-Series offers high-end performance in a compact form factor, with bandwidth models ranging from 100MHz up to an immersive 1GHz.

The MSOX3012G 100 MHz oscilloscope provides 2 analogue plus 16 digital channels, 4 Mpts memory, 1,000,000 waveforms/sec update rate, zone touch trigger with an 8.5-in capacitive touch screen, and standard embedded software with waveform and measurement histograms.

Whats Included

  • Embedded Software Package (D3000GENB)
  • PathWave BenchVue Oscilloscope Software (BV004B)
  • Waveform and measurement histograms
  • Instrument integration: oscilloscope (with LAN / VGA connectivity module), protocol analyzer, frequency response analyzer (Bode plots), 20 MHz arbitrary waveform generator, 3-digit voltmeter, 8-digital counter and totalizer, and mixed-signal oscilloscope for 16 digital channels
  • N2843A passive probe: 500 MHz, 10:1 attenuation (1 per channel)
  • N2756A 16 digital channel MSO cable
  • Factory 3-year warranty (90 days for unserialized accessories such as passive probes)
  • KeysightCare technical support
  • Certificate of calibration, 3-year calibration interval
  • Secure erase
  • Multi-language interface and help: English, Chinese (simplified), Chinese (traditional), Czech, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Polish, Thai, Turkish
  • Documentation CD containing localized user’s guide, service guide, and programmer’s manual
  • Localized power cord and overlay
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Form Mixed Signal
Range InfiniiVision
Series 3000G X-Series
Bandwidth 100 MHz
ADC Bits 8 bits
Max Memory Depth 4 Mpts
Max Sample Rate 5 GSa/s
Bandwidth Upgrades Available
Display Size 8.5-in capacitive touch screen
Special Triggers
  • CAN (Optional)
  • Edge
  • I²C
  • Pattern
  • Pulse Width
  • Rise / Fall Time
  • Runt
  • SPI
  • Setup & Hold
  • Video
  • Zone (HW Zone Qualifier)
Waveform Update Rate 1,000,000 wfms/s
Channels 2 + 16
More Information
Attribute Value
Data Sheet Click here to view
