MSOX3102A

MSOX3102A

Keysight Technologies

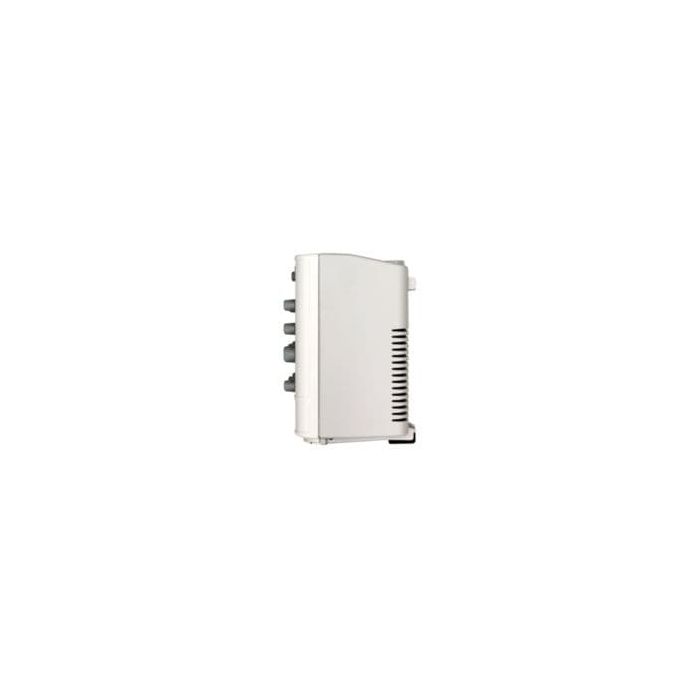

InfiniiVision 3000 X-Series 1GHz Mixed Signal Oscilloscope: 2 Analogue and 16 Digital Channels

Make measurements you can trust - Keysight 3000T X-Series oscilloscopes deliver high-end technology in a smaller form factor, with an extremely intuitive touch user interface. With an industry-leading waveform update rate, you can capture elusive glitches and anomalies not possible on other oscilloscopes.

Achieve 1 GHz of bandwidth and an immersive signal detail of 1,000,000 waveforms/second update rate with the Keysight MSOX3102A. With the advanced measurement capabilities of the MSOX3102A, Keysight oscilloscopes will help you test more efficiently whilst solving measurement challenges faster and easier. The MSOX3102A provides 2 analogues plus 16 digital channels, 4 Mpts memory and an 8.5-inch WVGA display.

Whats Included

  • 3-year factory warranty (90 days for unserialized accessories such as passive probes)
  • Certificate of calibration, 3-year calibration interval
  • Secure erase
  • N2843A passive probe 500 MHz 10:1 attenuation, 1 per channel
  • Multi-language interface and help: Chinese (simplified), Chinese (traditional), Czech, English, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Thai, and Turkish
  • Documentation CD containing localized user guide, service guide, and programmer’s manual
  • Localized power cord and overlay
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Form Mixed Signal
Range InfiniiVision
Bandwidth 1 GHz
ADC Bits 8 bits
Max Memory Depth 4 Mpts
Max Sample Rate 5 GSa/s
Bandwidth Upgrades Available
Display Size 8.5-inch WVGA display
Waveform Update Rate 1,000,000 wfms/s
Channels 2 + 16
More Information
Attribute Value
Data Sheet Click here to view
