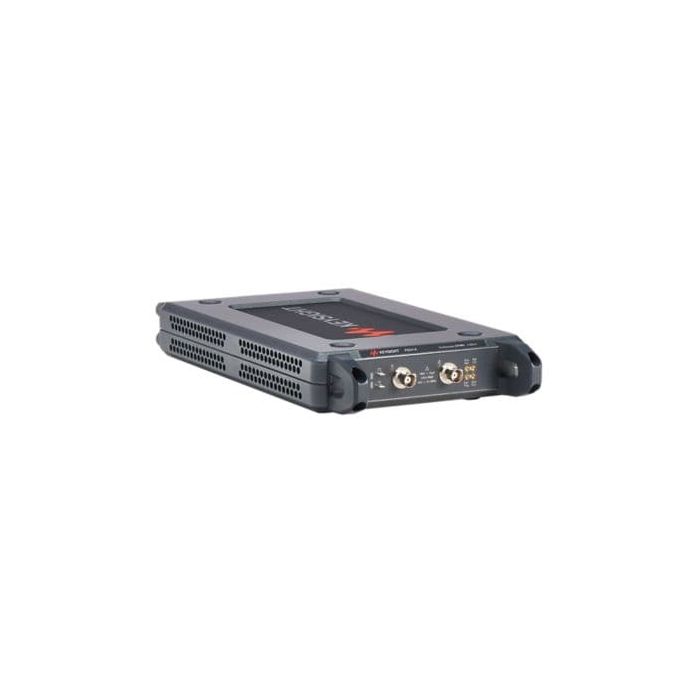

Keysight P9241A USB Oscilloscope | APC Technology Group

P9241A

P9241A

Keysight Technologies

Oscilloscope, 200 MHz, 2 ch, 5 GSa/s

Compact, faceless, USB oscilloscope using Keysight’s InfiiniVision technology. Available at 200 MHz and 5 GSa/s. Offers a small footprint and mobility.

Whats Included

Two N2843A probes. Quick start guide. USB 3.0 cable assembly. Power supply, external AC-DC adapter. Power cord. Calibration certificate

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Range Handheld, Modular, USB
Bandwidth 200 MHz
ADC Bits 8 bits
Max Memory Depth 4 Mpts
Max Sample Rate 5 GSa/s
Bandwidth Upgrades Not Available
Special Triggers Touch Zone Trigger
Built In Instruments (Optional) 3-digit DVM, 20 MHz AWG, 8-digit Counter, Protocol analyzer (optional software), Frequency response analyzer
Protocol Trigger & Decodes Optional
Channels 2
More Information
Attribute Value
Data Sheet Click here to view
