SW-Go-DFB

With Moku:Go’s Digital Filter Box, you can interactively design and generate different types of infinite impulse response filters with sampling rates of 61 kHz, 488 kHz, and 3.9 MHz. Select between lowpass, highpass, bandpass, and bandstop filter shapes with eight fully configurable types including Butterworth, Chebyshev, and Elliptic.

This instrument can be deployed independently or used as filter components in Multi-instrument Mode.

Key Features:

• Visualise your signal and configuration in real-time: design your filter’s frequency response using the interactive Bode plot

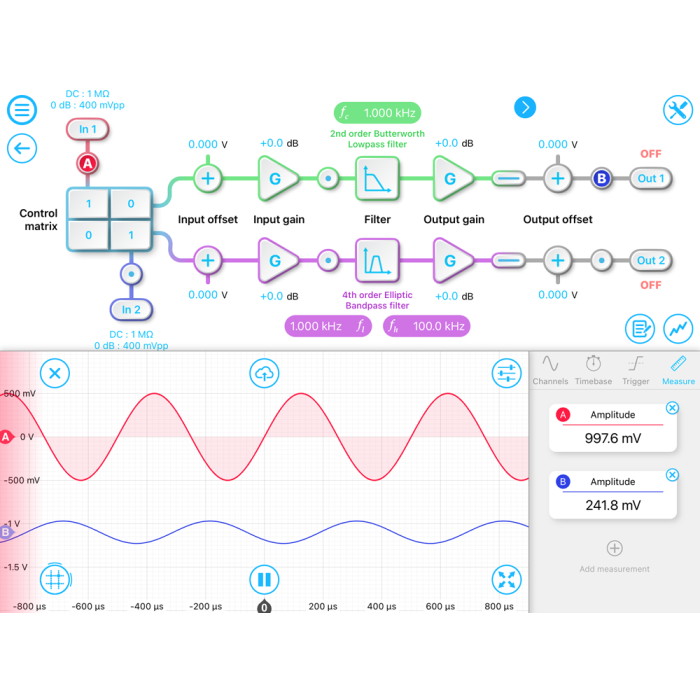

• Block diagram view of the digital signal processing with built-in probe points for signal monitoring
• Versatile input and output options: 2 input channels, 2 output channels with optional linear combinations
• Supports custom filter designs
