SW-Go-PID

The Moku:Go PID Controller instrument features two fully configurable PID controllers with an output sampling rate of >2.5 MSa/s. This enables them to be used in various applications such as current or robotic arm control. The intuitive graphical user interface allows you to directly adjust the PID parameters on the Bode plot.

Users are able to monitor the effects of the change with the built-in Oscilloscope in real time, which makes the Moku:Go PID Controller ideal for control system labs.

Key Features:

• 2 input channels, 2 output channels, and 2 independent PID Controllers with control matrix for optional blending
• Design your control system’s frequency response using the interactive Bode plot in real time

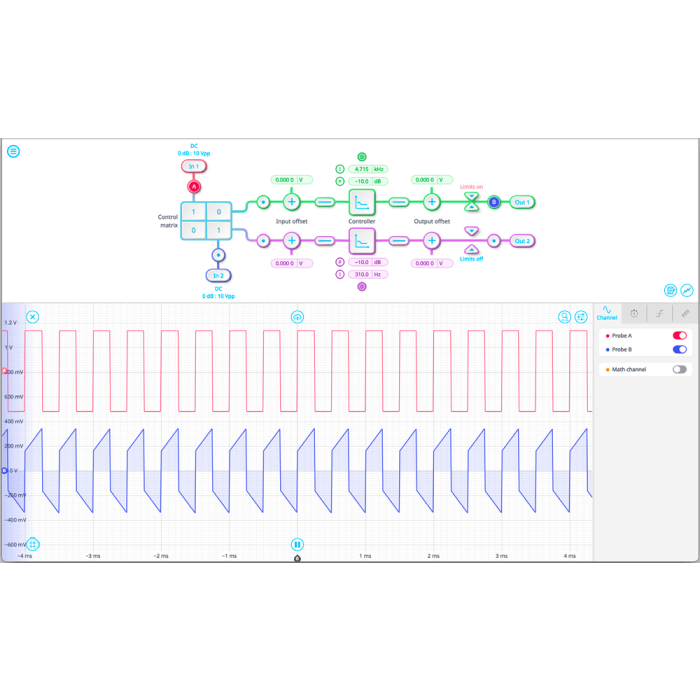

• Block diagram view of the digital signal processing chain with built-in probe points
• Advanced multi-section PID builder with single or double integrators and differentiators with low- and high-frequency gain saturation
