SW-Pro-TFA

Capture, count and timestamp events on multiple channels, all with low RMS jitter. Replace your frequency counter, event counter, photon counter, and more with one metrology-grade, flexible instrument.

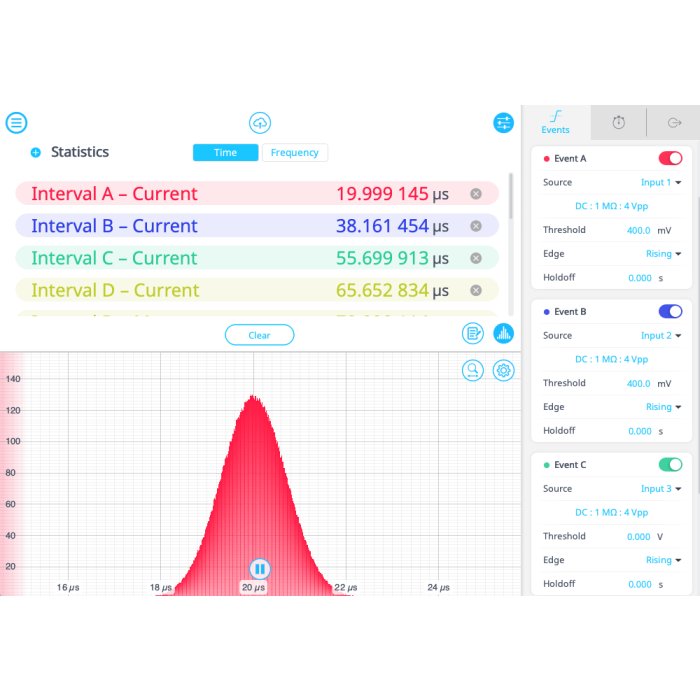

The Moku:Pro Time & Frequency Analyzer measures intervals between configurable start and stop events with sub-ns precision. Select between continuous, windowed, or gated acquisition mode, compute histograms of interval duration losslessly and in real time, and log high-resolution event timestamps to on-board storage.

Output the measured interval count or current interval to analogue output channels for active feedback control.

Key Features:

• Ultra-low device jitter of < 20 ps for high timing resolution analysis
• Up to four independent event detectors with configurable thresholds on rising edge, falling edge, or both
• Lossless, real-time histograms with a minimum bin width of 0.78 ps
• Output interval count or current interval with adjustable scaling factor
• High-resolution raw event timestamp logging to on-board storage for post processing
• Combine with up to three other instruments in Multi-instrument Mode for system level characterization and feedback control
