Bird

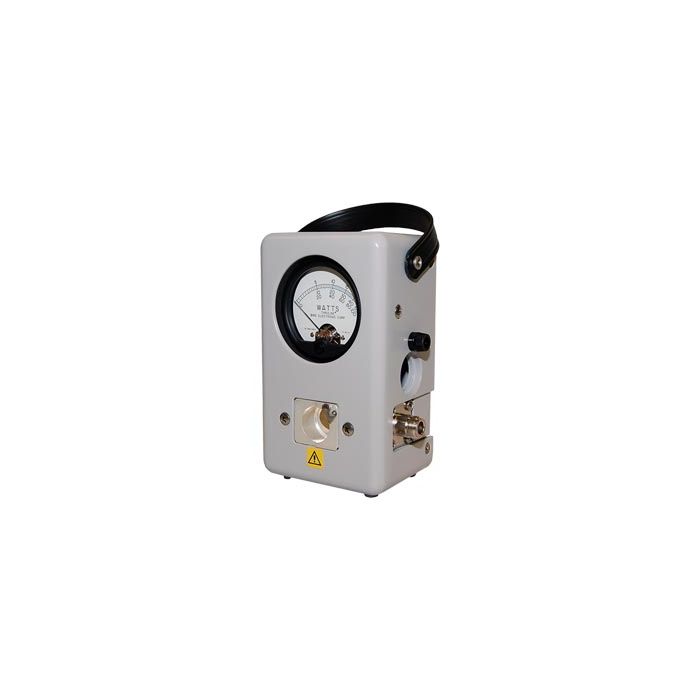

General Purpose WModel 43 RF Wattmeter - The Industry Standardattmeter
The 43 Wattmeter is a field-proven portable, insertion-type instrument designed to measure both forward and reflected CW power in coaxial transmission lines under any load condition. With a full-scale accuracy of ± 5%, it accurately measures RF power with low added VSWR and insertion loss. QC (quick change) type connectors and a full range of plug-in elements provide a wide choice of frequency ranges and power levels giving the Model 43 amazing flexibility. Two extra elements can be stored in the housing, one on each side.
Features
Accurate CW field power measurement over 450 kHz to 2.7 GHz and 100 mW to 10 kW
Uses industry standard Bird elements with space to store 2 additional within the meter housing
Rugged metal housing for the most demanding environments
Quick Change (QC) connectors to minimize the need for adapters when making critical measurements
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Brand Name | General Purpose Wattmeter |
| Absolute Accuracy | ± 5% of full scale |
| Dimensions | 6.88 in x 5.13 in x 3.63 in (175 mm x 130 mm x 92 mm) |
| Housing surface finish | Light Gray Powder Coat |
| Frequency Range | 450 kHz to 2.7 GHz (depending on element) |
| Insertion VSWR | 1.05 max. to 1000 MHz (with N Connectors) |
| Power range | 100 mW to 10 kW (using Bird® Plug-in Elements) |
| Connectors | QC Type (Female N normally supplied) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
