AP5002A

AP5002A

Keysight Technologies

Analogue Signal Generator, 9 kHz to 26 GHz

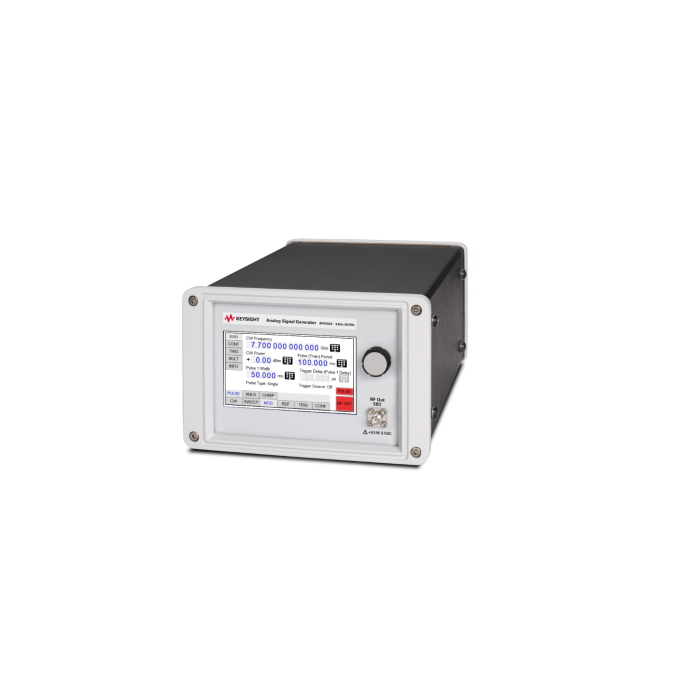

AP5002A analogue Signal Generator

Portable, pure signal generation for RF testing

Keysight’s compact and portable analogue signal generator enables you to characterize and fully stress-test your RF devices. Test devices up to 26 GHz quickly and confidently with outstanding output power range, low phase noise, and fast switching speed.

  • Characterise devices thoroughly with up to +23 dBm output power and -130 dBc/Hz phase noise.
  • Accelerate testing with 300 µs switching speed.
  • Generate a stabilised low-phase noise signal with micro-Hz resolution with an oven-controlled crystal oscillator (OCXO).
  • Enhance testing with sweep, trigger functions, and user-programmable external reference frequency.
  • Upgrade your box to a higher frequency or add more capabilities via a license key.

Keysight's portable RF analogue signal generators deliver outstanding power range, spectral purity, and switching speed, all in a compact size that fits easily on any bench and can easily be moved around the lab.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information

More Information
Attribute Value
Type Analogue
Output Power +23 dBm
Weight (kg) ≤ 2.5 kg (6 lbs) net, ≤ 4 kg (8 lb.) shipping
Data Sheet URL https://www.keysight.com/gb/en/assets/3124-1576/data-sheets/AP5002A-Microwave-Analog-Signal-Generator.pdf
Dimensions Including connectors: W x L x H = 174 x 262 x 117 mm [6.83 x 10.30 x 4.60 in]
Form Factor Compact
Frequency 26 GHz
Key Features • Use for various RF and microwave applications with accurately levelled output power from -120 dBm to +23 dBm.
• Measure accurately with OCXO stabilised signal (phase noise -130 dBc/Hz at 1 GHz, 20 kHz offset) with mHz resolution.
• Boost throughput and accelerate testing with fast switching speed.
• Leverage a range of extensive modulation capabilities such as AM, FM, PM, pulse modulation, pulse train, and frequency chirps.
• Seamlessly operate with an optimized user interface—including an LCD touch screen and remote desktop software.
• Upgrade licenses at any time for higher frequencies and additional options.
Phase Noise @ 1 GHz (10 kHz Offset) -130 dBc/Hz
