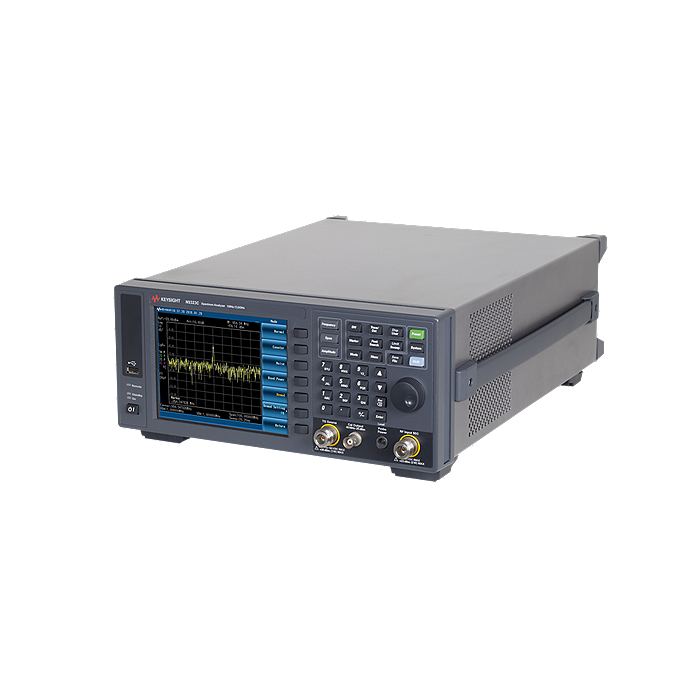

N9323C
N9323C
Keysight Technologies
Basic Spectrum Analyser (BSA), 1 MHz to 13.6 GHz
The N9323C includes a window limit feature that makes simultaneous determinations on the frequency and power limits of a signal. This one-button pass / fail determination reduces instrument setup complexity and significantly improves testing efficiency.
Examples of use cases include electromagnetic interference (EMI) emission tests, spectrum monitoring, and consumer electronics applications.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
Extended 5 year warranty on Keysight’s basic spectrum analysers
Increase the trustworthiness of your Keysight investment with our special promotion offering an extended product warranty on N9321C, N9323C and N9324C model spectrum analysers up to 20 GHz.
Promotion available until 31st August 2022.
| Attribute | Value |
|---|---|
| DANL @ 1 GHz | -144 dBm |
| Maximum Analysis Bandwidth | 1 MHz |
| Standard Attenuator Step | 5 dB |
| TOI @ 1 GHz (3rd Order Intercept) | +11 dBm |
| Instrument Type | Benchtop |
| Frequency | 1 MHz to 13.6 GHz |
| Key Features |
|
| Maximum Frequency | 13.6 GHz |
| Minimum Frequency | 1 MHz |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
