microSync Broadcast
microSync Broadcast
Meinberg
Compact and flexible Sync Solution for Broadcast Environments
Meinberg's microSync for broadcast applications is a powerful dual-port PTP generator, supporting SMPTE ST 2059-2 profile and offering a high level of efficiency and flexibility.

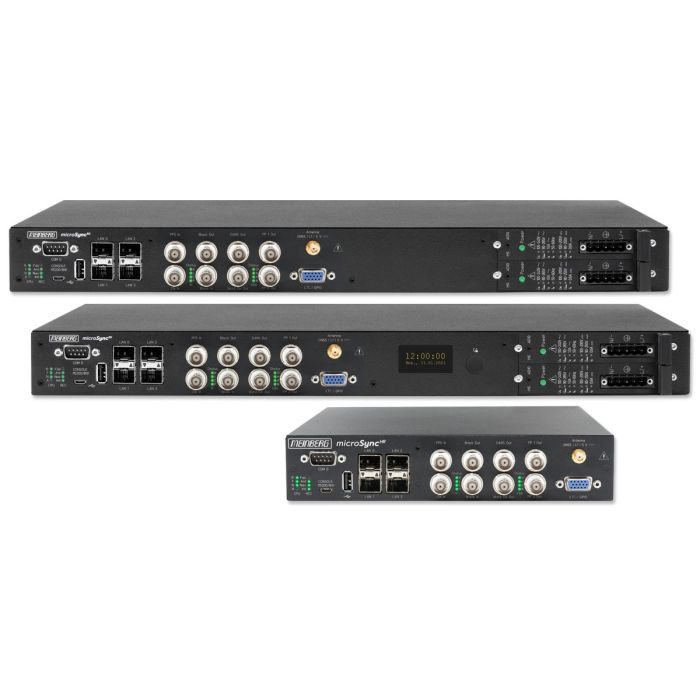

It is available in a compact, space-saving half-rack design and in a 19-inch rack-mount enclosure which additionally offers redundant power supplies and OLED display as an option.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manual URL | https://www.meinbergglobal.com/download/docs/manuals/english/microsync.pdf |
| Power Consumption | microsyncHR Pmax = 30 W microsyncRX Pmax = 100 W (redundant operation) |
| Form Factor |
|
| Relative Humidity | 5 % to 95 %, 40 °C, non-condensing |
| RoHS | Yes |
| Altitude | Up to 4000 m (13,123 ft) above sea level |
| Further information |
This innovative, multipurpose Synchronisation solution offers a variety of outstanding features, many of which are also found in Meinberg’s IMS and LANTIME product families.
Key features include a GNSS receiver, two PTP ports, two Management/NTP ports, Black Burst, LTC, Word Clock, DARS and many other sync pulses available as input or output. The microSync Broadcast variants combine a modern sync reference for IP based devices and a Signal Pulse Generator for legacy video and audio devices. The half-rack microSyncHR (7xx) model impresses with its compact design and high port density and is a perfect solution for smaller broadcast environments like OB vans or remote production use cases. The 19-inch rackmount microSyncRX (7xx/8xx) model additionally offers redundant power supplies and OLED display as an option. The units run the operating system meinbergOS and can be managed using the Meinberg Device Manager software, which is available for Windows and Linux platforms. |
| Protection | IP30 |
| Network Interface |
Gigabit Ethernet (GbE) - SFP:
LAN 0, LAN 1 Management 10/100/1000Mbit RJ45 or 1000FX NTP LAN 2, LAN 3 Management 10/100/1000Mbit RJ45 or 1000FX NTP / PTP |
| Universal Serial Bus (USB) Ports |
USB Terminal
USB-to-serial console - Micro-USB Type B USB Host USB connector management CPU - USB Type A |
| Scope of supply | Included in delivery is an outdoor antenna incl. mounting kit, pre-assembled antenna cable and product documentation on USB storage. The microSyncHR system is supplied with a power adapter (input voltage range 90 - 264 V AC, output voltage 24 V DC). |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| Supported PTP Profiles |
Default:
- IEEE 1588v2 (PTPv2) Power: - IEC/IEEE 61850-9-3 - IEEE C37.238-2011 - IEEE C37.238-2017 Telecom: - ITU-T G.8265.1 Frequency - ITU-T G.8275.1 Phase/Time - ITU-T G.8275.2 Phase/Time - DOCSIS 3.1 Broadcast: - SMPTE ST 2059-2 - AES67 Media Profile AVB/TSN: - IEEE 802.1AS |
| BNC Connectors |
Output Signals
Black Burst Output Output signal: PAL, NTSC Black Burst with VITC support Signal level: 300 mVpp into 75 Ohm (unbalanced) PAL (SMPTE259M/ITU-R BT.470-6) NTSC (SMPTE170M/ITU-R BT.470-7) VITC (SMPTE12M-1/SMPTE ST309M) Tri-Level Sync: 720p50 Hz (SMPTE296M3) 1080i25 Hz (SMPTE274M6) 720p59,94 Hz (SMPTE296M1) 1080i29,97 Hz (SMPTE274M7) DARS Output Output signal: DARS Signal level: TTL, 2.5 Vpp into 75 Ohm Signal type: base frequencies - 44.1 kHz and 48 kHz Word Clock Output Output signal: Word Clock Signal level: TTL, 2,5 Vpp into 75 Ohm Base frequencies: 44.1 kHz and 48 kHz Frequency range (44.1 kHz): 1.378125 kHz ... 1.4112 MHz Frequency range (48 kHz): 1.5 kHz ... 1.536 MHz Scale factor: 1/32, 1/16, 1/8, 1/4, 1/2, 1, 2, 4, 8, 16, 32 Input Signals Black Burst Input Input signal: Black Burst (PAL) Input with VITC Reader Input with Prescaler mode (Frequency only) Signal level: 300 mVpp into 75 Ohm (unbalanced) Time Code Formats: PAL SMPTE259M / ITU-R BT.470-6 SMPTE12M-1 / SMPTE ST309M Word Clock Input Input signal: Word Clock Input with programmable frequency range Signal level: TTL Frequency range: 1 kHz - 10 MHz Pulse Per Second Input Input signal PPS (pulse per second) Signal level: TTL Pulse length: >= 5 microsec, active high |
| Synchronous Ethernet |
Master and Slave Capability
Compliant to ITU-T G.8261, G.8262 and G.8264 Ethernet Synchronisation Messaging Channel (ESMC) |
| Network protocols |
IPv4, IPv6
NTPv3, NTPv4 PTPv2 IEC 62439-3 (PRP) DHCP, DHCPv6 DSCP IEEE 802.1q VLAN filtering/tagging IEEE 802.1p QOS SNMPv1/v2/v3 Remote Syslog Support (UDP) |
| Oscillator Options |
OCXO SQ
Holdover performance 1 day: ± 220 μsec 1 year: ± 4.7 sec OCXO MQ Holdover performance 1 day: ± 65 μsec 1 year: ± 1.6 sec OCXO HQ Holdover performance 1 day: ± 22 μsec 1 year: ± 788 msec OCXO DHQ Holdover performance 1 day: ± 4.5 μsec 1 year: ± 158 msec |
| Atmospheric Pressure | 615 to 1600 hPa |
| Compliances |
CB Scheme
CE FCC UL CSA WEEE, Waste of Electrical and Electronic Equipment RoHS, Restriction of Hazardous Substances REACH, Registration, Evaluation, Authorization and Restriction of Chemicals |
| General Purpose Input/Output |
GPIO / LTC
Input signal: LTC Reader (25 fps) Output signals: LTC Out, DARS Out, Time Sync Out Signal level: TTL, 2,5 Vpp (MARK/SPACE) into 50 Ohm |
| Key Features |
|
| Storage Temperature | -20 to 70 °C (-4 to 158 °F) |
| Operating Temperature | 0 to +50°C |
| Interface | Single serial RS-232 interface |
| Power Supply |
Maximum voltage range:
microSyncRX AC / DC: 90-265 V AC, 47-63 Hz / 90-250 V DC DC: 20-60 V DC microSyncHR DC: 10-36 V DC |
| Dimensions | 482.6 x 248 x 43mm |
| Display | OLED Display Option Functions (system administration): IP Address Netmask Gateway DHCP Indication: Time and Date Status of Synchronisation source: Firmware version Model and serial number |
