MSF600USB
MSF600USB
Meinberg
MSF Radio Clock for the Universal Serial Bus (USB)

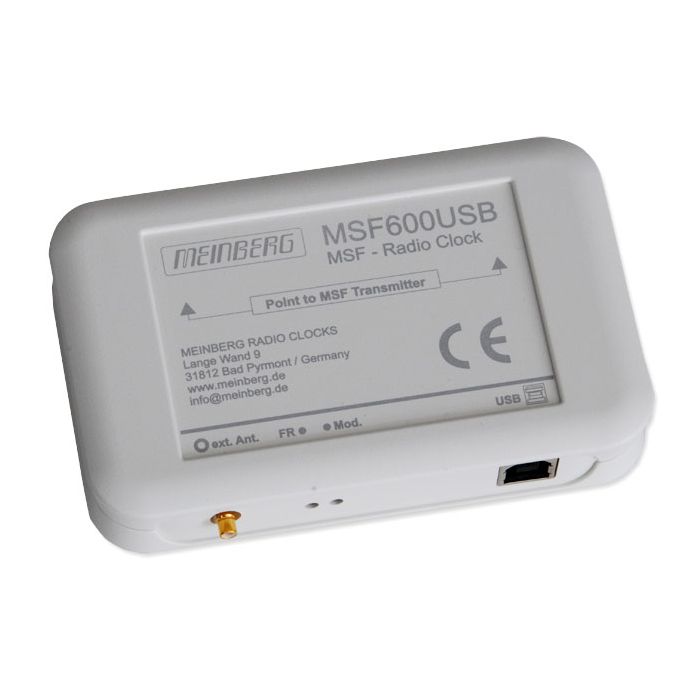

The MSF600USB is a MSF Radio Clock for USB in a compact plastic housing with an integrated MSF antenna, an (optional) external antenna can be connected to compensate degraded reception quality. This device is a perfect alternative for synchronizing computer systems where no PCI slot or serial port is available for time Synchronisation.
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Manual URL | https://www.meinbergglobal.com/download/docs/manuals/english/msf600usb.pdf |
| Relative Humidity | Max. 85% |
| Further information |
The MSF600USB shows the reception quality via its status LED and uses a buffered real time clock to maintain the time while powered off. There is no power supply required, it is powered by the Universal Serial Bus.
The MSF600USB provides a professional solution to your time Synchronisation requirements in mobile applications like field data acquisition with a laptop/notebook and can be deployed whenever you need to Synchronise a standalone PC, laptop or server when no PCI or serial port is available. The drivers package for Windows contains a time adjustment service which runs in the background and adjusts the Windows system time continuously and smoothly. A monitor program is also included which lets the user check the status of the device and the time adjustment service, and can be used to modify configurable parameters, if run with administrator rights. The driver packages for Linux and FreeBSD contain a kernel driver which allows the board to be used as a reference time source for the NTP daemon which is shipped with most Unix-like operating systems. This also turns the computer into an NTP time server which can also provide accurate time to NTP clients on the network. Some command line tools can be used to setup configurable parameters and monitor the status of the board. The Meinberg Single-Driver-Concept simplifies driver installation dramatically - there is only one driver who supports all Meinberg PCI and USB devices and if you use our API to access your Meinberg timing device from within your own applications, you can use the same source code for both PCI and USB devices. |
| RoHS | Yes |
| Product Type | USB Clocks |
| Scope of supply | Radio Clock, 3 m USB cable |
| WEEE status of the product | This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. Any transportation expenses for returning this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. |
| Synchronisation Time | 2-3 minutes after signal reception has been established |
| Antenna Connector | SMB-Subminiature-coaxial-connector |
| Current Consumption | 90mA |
| Receiver | Integrated MSF long wave radio receiver 60kHz |
| Key Features |
USB 2.0 (Universal Serial Bus), 5V
Receiver status LEDs Buffered hardware clock Powered by USB (no extra power supply required) Connector for external MSF antenna Plastic Case 3 Year Warranty |
| Operating Temperature | 0 ... 50°C / 32 ... 122°F |
| Dimensions | 73mm x 117mm x 24mm (L x W x H) |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
