TPP0250

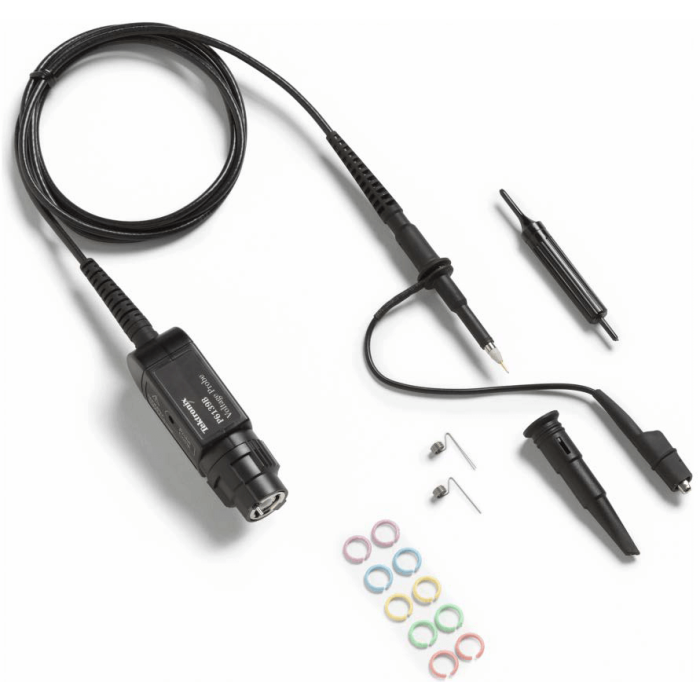

The Tektronix TPP0250 probe is a high-bandwidth, general-purpose probe from Tektronix that offers breakthrough specifications previously unrealised in this product class. Designed for use with Tektronix MDO3000, MDO4000, MSO/DPO5000, and 5 Series MSO Series oscilloscopes, these probes provide up to 1 GHz of analogue bandwidth with less than 3.9 pF of capacitive loading.

Accurate high-speed passive probing

The extremely low capacitive loading limits adverse effects on your circuits and is more forgiving of longer ground leads. And with the probe's wide bandwidth, you can see the high-frequency components in your signal which is critical for high-speed applications. The TPP0250 passive voltage probe offers all the benefits of general-purpose probes like high dynamic range, flexible connection options, and robust mechanical design, while providing the performance of active probes.

Accurate low voltage

The TPP0502 offers the industry's highest bandwidth (500 MHz) and lowest attenuation factor (2X) for making low-voltage measurements such as ripple, a common measurement on the output of power supplies. The low capacitive loading of the TPP0502 means long ground leads can also be used on this probe with minimal impact on measurement quality, providing today's engineers with the flexibility to move around their design without worrying about ground lead length.

Tektronix TPP0250 Key performance specs:

• 250 MHz bandwidth
• <4 pF input capacitance
• 10X and 2X attenuation factor
• 300 V CAT II input voltage
• Designed for use with the MDO3000, MDO4000, MSO/DPO5000,
  and 5 Series MSO Series oscilloscopes
