HD-1612
HD-1612
LOCOSYS Technology
Complete standalone GPS module which uses the latest GPS chips to integrate an additional LNA and SAW filter.

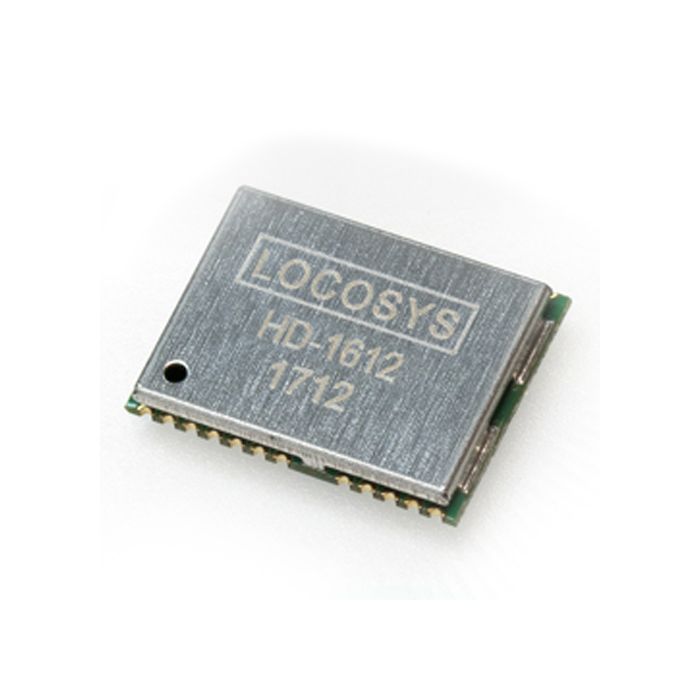

LOCOSYS HD-1612 is a complete standalone GPS module which uses ALLYSTAR latest GPS chip to integrate with an additional LNA and SAW filter. The module can simultaneously acquire and track multiple satellite constellations that include GPS, QZSS and Galileo. It features low power and fast time-to-first-fix.
Besides, it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment.
LOCOSYS HD-1612 module is compatible with world-class mainstream GPS module in size and UART interface, the SMD connection type design makes it easy for users' mass production and also save users' design engineer efforts and production costs.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Maximum Input Voltage | 3.0V - 3.6V |
| Module Type | GPS Module |
| Satellite Systems | GPS, QZSS |
| Power (mA) | 29.5mA |
| VB (uA) | 13uA |
| Operating Temperature | -40 ~ 85°C |
| Interface | UART |
| Dimensions | 16 x 12.2 x 2.2 mm |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
