LS2603x-2RE
LS2603x-2RE
LOCOSYS Technology

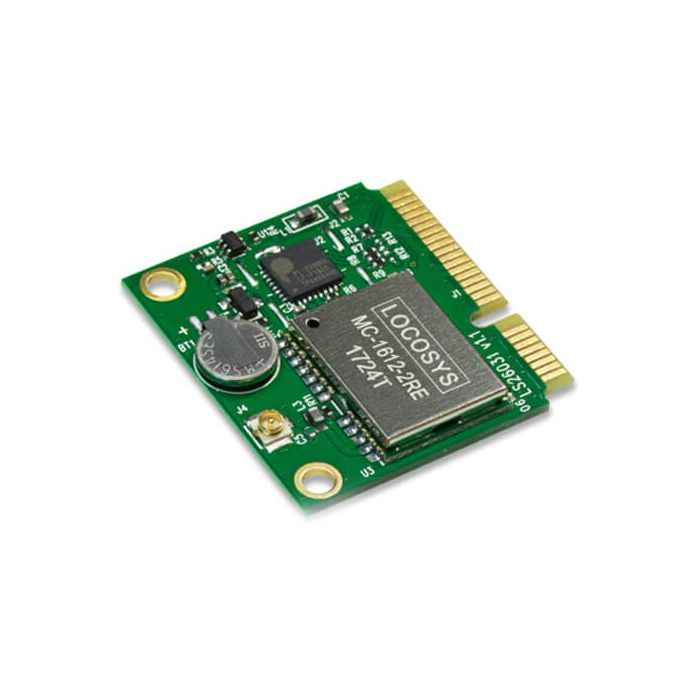

PCIe full-mini card or PCIe falf-mini card with incorporated GPS modules
The LOCOSYS LS26030-2RE and LS26031-2RE are GPS modules incorporated into a PCIe full-mini card or PCIe half-mini card. These GPS modules use a MediaTek GPS chip (MT3337E) and can provide superior sensitivity and performance in urban areas and dense foliage environments.
The USB interface makes these modules easy to integrate into a laptop. These modules support self-generate orbit prediction, EASYTM, to achieve a faster cold start and warm start. The EASYTM requires no need of both network assistance or host CPU intervention. The prediction is valid for up to 3 days and updates automatically from time to time when the GPS module is powered on and satellites are available.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Key Features |
|
| Maximum Input Voltage | 3.0V - 3.6V |
| Satellite Systems | GPS, QZSS |
| Power (mA) | 35mA |
| VB (uA) | 6uA |
| Operating Temperature | -40 ~ 85°C |
| Interface | USB |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
