U2652A

U2652A

Keysight Technologies

Digital IO DAQ; 64-CH isolated DI

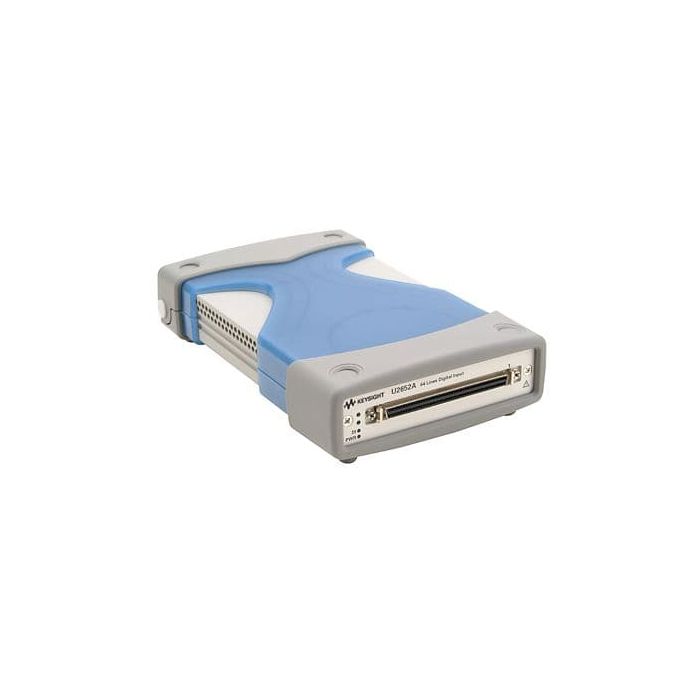

main product photo

The Keysight U2652A USB Digital I/O is a cost-effective device with its offering of 64 opto-isolated digital lines.

Giving users more flexibility, the U2652A is compatible with a wide range of application development environments such as Keysight VEE, MATLAB® R2007a, NI LabVIEW and Microsoft® Visual Studio®.

The U2652A works together with an optional U2903A or U2904A terminal block for easy connections.

With high voltage protection of 1250Vrms, the U2652A is ideal for industrial automation and control.

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Options Options
  • No information found for this product
Key Features
  • High-speed USB 2.0, USBTMC-USB488 standard (compatible with Microsoft® Windows® operating systems)
  • Functions as a standalone or modular unit
  • Interrupt function
  • Virtual Port grouping function
  • High performance
    - 64 Input lines
    - Isolation Protection of 1250Vrms
    - Input voltage: 10 to 24V
  • A BenchVue software license (BV0025B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences
Additional Services KeysightCare Service Plan OC
  • R-55D-001-3Z - KeysightCare Technical Support - 3 years
  • R-55D-001-5ZU - KeysightCare Technical Support - Upgrade to 5 years
Return to service center warranty and service plan - includes Service Pack
  • R-51B-001-F - Return to Keysight Warranty - 3 years
  • R-51B-001-5F - Extended Warranty - Return to Keysight - 5 years
