U8554
U8554
Hioki

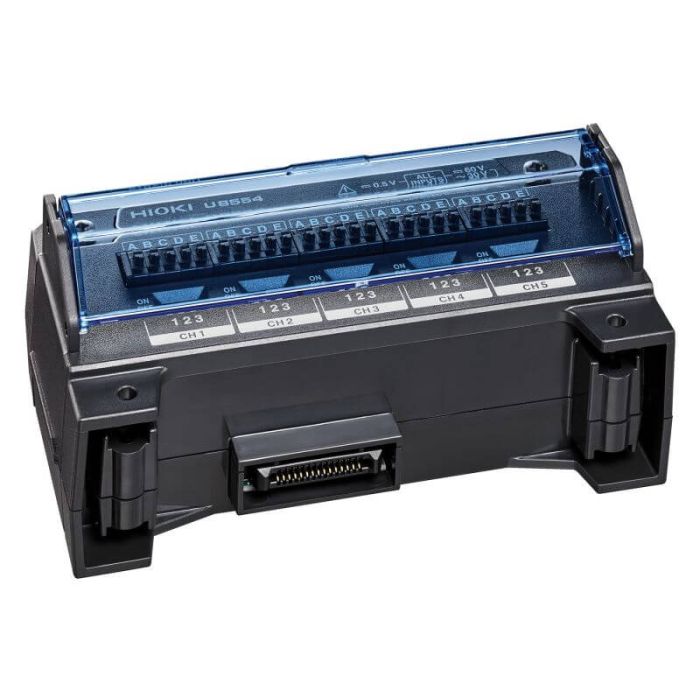

Strain Unit U8554 - Strain measurement with 1 ms sampling
More Information
| Attribute |
Value |
| Key Features |
- 5 channels, strain measurement
- Sampling rate of up to 1 ms with 5 channels
- Direct input of strain gages and strain gage transducers
|
| Basic Specifications |
| Connectable instruments |
Memory HiLogger LR8450 (Designed for use with plug-in units only)
Memory HiLogger LR8450-01 (Wireless LAN model) |
Operating temperature
and humidity |
-10°C to 50°C, 80% RH or less (no condensation) |
Storage temperature
and humidity |
-20°C to 60°C, 80% RH or less (no condensation) |
| Vibration resistance |
JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent |
| Accessories |
Instruction manual × 1, mounting screw × 2, wiring confirmation label |
Number of input
channels |
5 ch (Able to set voltage or strain for each channel.) |
| Input terminals |
Push-button type terminal block (5 terminals per channel), outfitted with terminal block cover
Set DIP switches according to measurement target. |
Measurement
target |
Voltage
Strain: Strain gage
1-gage method (2-wire setup), 1-gage method (3-wire setup), 2-gage method (adjacent sides), 4-gage method
Strain gauge transducer |
| Input type |
Balanced differential input, Simultaneous sampling of all channels
(non-isolated channels) |
|
| Instrument Type |
Strain Meter |
