Hioki U8556 Current Module 1 ms/S | APC Technology Group

U8556

U8556

Hioki

5-Channel Logger Module for Current Sensors, 1 ms

This product is available in 5-7 weeks

5-Channel Logger Module for Current Sensors, 1 ms

Key Features

  • Individual scaling for each current sensor
  • Current logging from 100 µA to 2 kA DC in one device
  • Up to 20 channels precision current logging with 1 ms update interval
  • High-voltage Electric Vehicle (EV) battery current logging and low power circuit current logging possible with a single device
  • 5 input channels with individual signal conditioning
  • 1 ms simultaneous update interval
  • Operating temperature -20 oC to 55 oC
  • Up to 4 modules per LR8450 Series Data Logger
  • Can be combined with a large variety of current sensors from 2 A to 6000 A

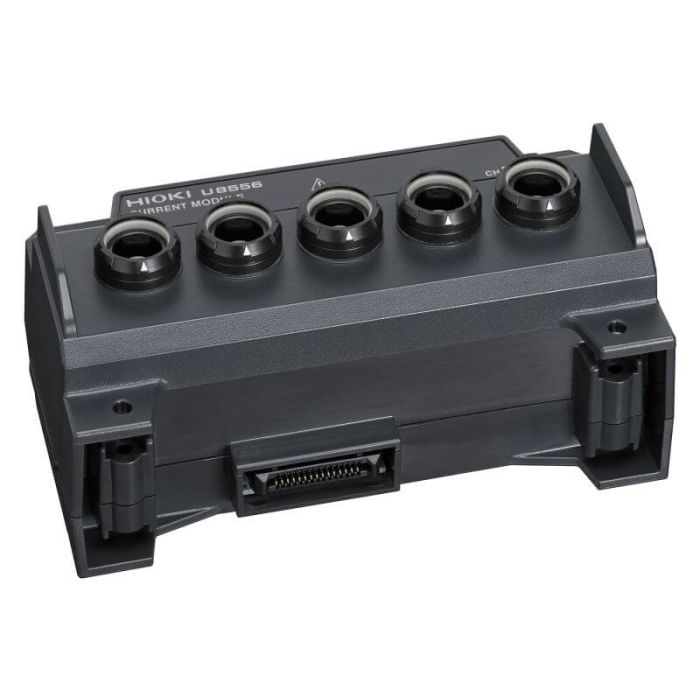

The U8556 Current Module is the interface between up to 5 clamp-on current sensors and the LR8450 Series Data logger. Each input channel has its own signal conditioning which enables individual scaling and simultaneous 1 ms recording. It is exclusively designed to add current logging functionality to the highly versatile LR8450 Series Data Loggers. Up to four U8556 modules can be connected to a single LR8450 Series Data Logger.

The module can be used with the ultra-compact yet high-precision current sensors CT7812 and CT7822 as well as with a variety of other HIOKI current sensor types reaching from 2 A to 6 kA. These can be used in any combination in accordance with the application and test requirements, providing extended usability of the data logger. All temperature-compensated https://www.hioki.com/euro-en/products/multichannel-data-loggers/multichannel/id_1266366 HIOKI current sensors with a PL14 connector are suitable to be used in combination with the new U8556 Current Module.

In stock
£1,140.58
More Information
Attribute Value
Key Features
  • Sample data at rates of up to 1 ms
  • Measure up to 5 channels
More Information
Attribute Value
Data Sheet Click here to view
