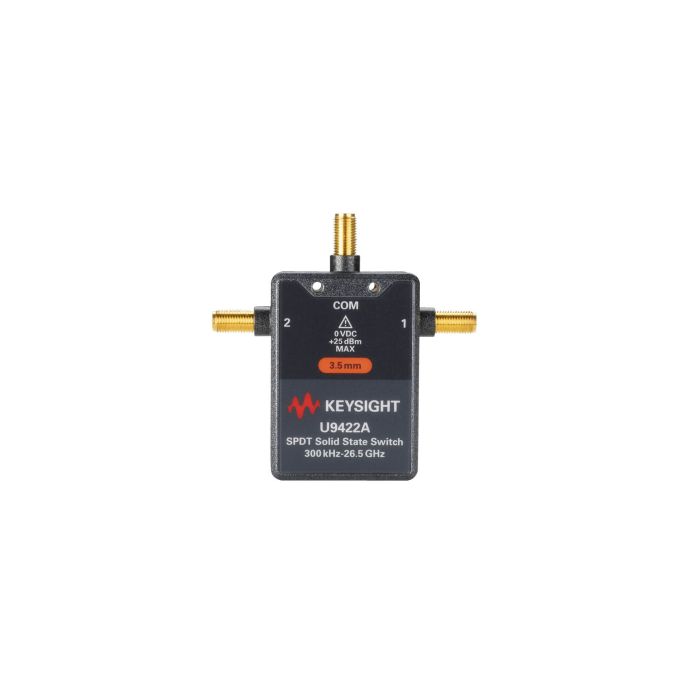

U9422A
U9422A
Keysight Technologies
FET Solid State Switch, 300 kHz to 26.5 GHz, SPDT
The U9422A FET solid state switch offers superior performance in terms of isolation and video leakage across a broad operating frequency range of up to 26.5 GHz. This SPDT switch is used to increase system flexibility and simplicity and are easily controlled with USB connection; that comes with the flexibility of multiport configuration connectivity port PXIe and USB VNA or through a soldering connector option.
This switch offers unmatched isolation performance between ports, as high as 100 dB at 9 GHz or 70 dB up to 54 GHz. In addition, the U9422A provides low video leakage less than 50 mVpp for SPDT which ensures safe testing of sensitive components.
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Altitude |
Operating: <4,600 meters (15,000 feet)
Non-operating: <4,600 meters (15,000 feet) |
| Key Features |
|
| Connectivity | Solder terminal or USB 3.1 with Multiport configuration connectivity port for PXIe and USB VNA |
| Poles | SPDT |
| Shock |
End-user handling: Delta-V: 1.6 m/s (60 in/s) ±5%, Duration <3ms
Transportation: 50G, Delta-V: 8m/s ±10% at 6 faces |
| Vibration |
Operating random: 0.21 Grms
Survival random: 2.41 Grms |
| Operating Humidity | 95% RH at 40°C (non-condensing) |
| Applications | Ideal for RF and microwave switching applications in instrumentation, communication, radar, switch matrices and various other test systems |
| OFF port return loss, dB (VSWR) |
300 kHz to 14 GHz: 13.3 (1.6)
14 to 20 GHz: 11.7 (1.7) 20 to 26.5 GHz: 12.9 (1.59) 26.5 to 40 GHz: 12.7 (1.6) 40 to 45 GHz: 7.8 (2.4) 45 to 51 GHz: 6.3 (2.9) 51 to 54 GHz: 9.5 (2.0) |
| ON port return loss, dB (VSWR) |
300 kHz to 14 GHz: 14 (1.5)
14 to 20 GHz: 11 (1.79) 20 to 28 GHz: 9.5 (2.0) 28 to 45 GHz: 8.4 (2.2) 45 to 54 GHz: 6.2 (2.9) |
| Switching Speed |
Solder terminal: 120 ns
Multiport configuration connectivity port: 16 us USB 3.1 300 us |
| Video Leakage | 270 mVpp |
| Power Handling (max) | 25 dBm |
| Automation SW with VNA | Yes (for option 002) |
| Storage Temperature | –40°C to +70°C |
| Maximum Frequency | 26.5 GHz |
| Isolation (dB) |
300 kHz to 500 MHz: 90
500 MHz to 9 GHz: 100 9 to 18 GHz: 90 18 to 22 GHz: 88 22 to 30 GHz: 79.5 30 to 38 GHz: 80 38 to 50 GHz: 77 50 to 54 GHz: 70 |
| Insertion Loss (dB) |
300 kHz to 9 GHz: 3.1
9 to 18 GHz: 3.8 18 to 26.5 GHz: 4.6 26.5 to 37 GHz: 5.6 37 to 45 GHz: 5.9 45 to 52 GHz: 7.3 52 to 54 GHz: 8.1 |
| Minimum Frequency | 300 kHz |
| Operating Temperature | 0°C to +55°C |
| Dimensions |
option 001: 70.2 x 70.5 x 23 mm
option 002: 40.2 x 85 x 23 mm |
