VT1005

VT1005

VT1005

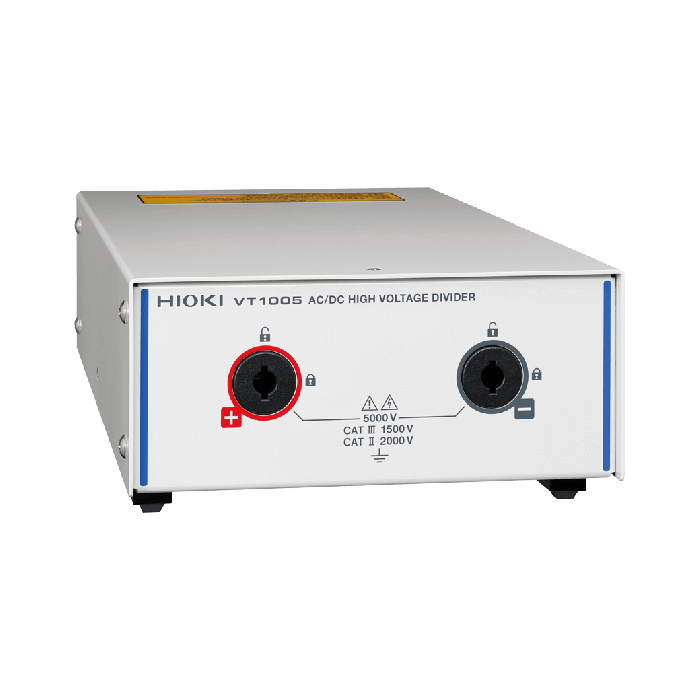

AC/DC High Voltage Divider

Safely measure high Voltages up to 5000 V

Detect Efficiency Improvement Effects on the Order of 0.1%

Inverters used in rail and power system applications convert high-voltage power. To measure the efficiency of such conversions, it’s necessary to measure voltages of 1000 V and above. The VT1005 divides voltages of up to 5000 V and outputs them to a power analyser. In order to measure the efficiency of high-efficiency inverters with a high degree of precision, you need to be able to accurately measure power from DC to high frequencies. Thanks to its excellent frequency flatness, the VT1005 makes possible accurate measurement at frequencies ranging from the fundamental wave to switching-frequency components.

Key Features

  • Max. Input 5000 V (*1)
  • 2000 V CAT II
  • 1500 V CAT III
  • Measurement Accuracy:
    • ±0.08% (DC)
    • ±0.04% (50/60 Hz)
    • ±0.17% (50 kHz)
  • Frequency Flatness:
    • ±0.1% Amplitude Band 200 kHz Typ.
    • ±0.1° Phase Band 500 kHz Typ. (*2)
  • Measurement Band: DC to 4 MHz (-3 dB)
  • Noise Resistance:
    • CMRR 80 dB Typ. (100 kHz)
    • Differential Input Method


*1:±7100 V peak, no measurement category, anticipated transient overvoltage of 0 V
*2: After phase correction by the power analyser

Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute Value
Power Supply 100 V to 240 V AC (50/60 Hz)
Included Accessories - L1050-01 Voltage Cord ×1 (1.6 m/ 5.25 ft) - L9217 Connection Cord ×1 (insulated BNC, 1.6 m/ 5.25 ft) - 9704 Conversion Adapter ×1 (insulated-female BNC-to-banana plug) - Power cord ×1
Measurement accuracy ±0.08%(DC), ±0.04%(50/60 Hz), ±0.17% (50 kHz)
Dimensions and Weight Approx. 195.0 mm (7.68 in) W × 83.2 mm (3.28 in) H × 346.0 mm (13.62 in) D mm Approx. 2.2 kg (77.6 oz.)
Measurement Range [Voltage] 0.15 V to 1000 V AC/DC [Current] Direct input: 2 mA to 65 A AC/DC For AC/DC measurement using the CT6877A as an example: 4 A to 2000 A AC/DC (typical accuracy ±0.348%) For AC measurement using the CT9667-01 as an example: 10 A to 5000 A AC (typical accuracy ±2.6%)
Measurement Method Differential input
Standards Safety: EN 61010 EMC: EN 61326 Class A
Operating Temperature And Humidity Range -10°C to 50°C (14°F to 122°F), 80% RH or less (non-condensing)
Maximum Rated Voltage 5000 V rms, ±7100 V peak (*1)
Maximum Rated Voltage (Line-To-Ground) No measurement category: 5000 V AC/DC (*2) Measurement category II: 2000 V AC/DC (*3) Measurement category III: 1500 V AC/DC (*4)
Voltage Dividing Ratio 1000:1
Frequency Flatness Band where amplitude falls within ±0.1% range: 200 kHz (typical) Band where phase falls within ±0.1° range: 500 kHz (typical) (*5)
Measurement Bandwidth DC to 4 MHz (Amplitude and phase accuracy specified up to 1 MHz)
Common-Mode Voltage Rejection Ratio (CMRR) 50 Hz/60 Hz: 90 dB (Typical) 100 kHz: 80 dB (Typical)
Storage Temperature And Humidity Range −20°C to 60°C (-4°F to 140°F), 80% RH or less (non-condensing)
Notes *1:Within the frequency derating range No measurement category: Applicable to the measurement of circuits that are not directly connected to the main power supply. EXAMPLE: Measurement on the secondary-side equipment from the socket outlet of fixed installation through a transformer, etc. *2:±7100 V peak, Anticipated transient overvoltage 0 V *3:Anticipated transient overvoltage 12000 V *4:Anticipated transient overvoltage 10000 V *5:After phase correction by the power analyser
