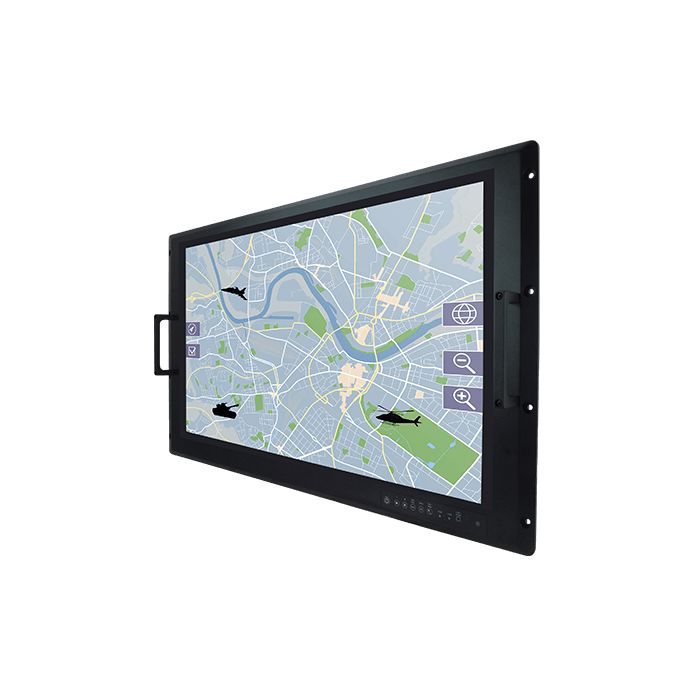

32" Intel® Core™ i5 Military Console Rack Panel PC
To meet the regulatory requirements of the military and defense, all Winmate's Military Console Rack Displays are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standard.
Selected models support the NVIS MIL-STD-3009 night vision. Winmate performs in-house reliability test to ensure optimal performance in harsh military environments.
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Size | 32.0 inches |
| Power Rating |
|
| Operating System | Windows 10 IoT Enterprise (Optional) |
| Resolution | 1920x1080 |
| Processor | Intel® Core™ i5 -8265U (6M Cache, 1.6GHz up to 3.9 GHz) |
| Storage |
1 x M.2 2242 B-key SSD 64GB
up to 512GB (Optional) |
| Contrast Ratio | 4000:1 |
| LAN | 2 x RJ-45 |
| Mounting | VESA Mount/ Rack Mount |
| Certifications | CE, FCC |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| USB | 2 x USB 3.2 Gen 1 |
| Cooling system | Fanless Design |
| Enclosure | Metal Housing with Aluminum Bezel |
| Video | 1 x HDMI (Optional) |
| Ethernet Controller |
|
| Button |
8 Key OSD Control Pad:
|
| MIL-STD 810F/G |
|
| MIL-STD 461E/F |
|
| Operating Humidity | 10% to 95% RH |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| View Angles | 89,89,89,89 |
| Panel Brightness | 400 nits |
| Accessories |
1 x Manual(Hardcopy)
1 x Driver CD 1 x Power Cord (MIL-DTL-38999/1) |
| Storage Temperature | -10°C~60°C |
| Operating Temperature | 0~50°C |
| Memory |
1 x SO-DIMM, DDR4 2400 MHz, 4GB
8GB (Optional) 16GB (Optional) 32GB (Optional) |
| Dimensions | 825 x 500 x 87.2 mm |
