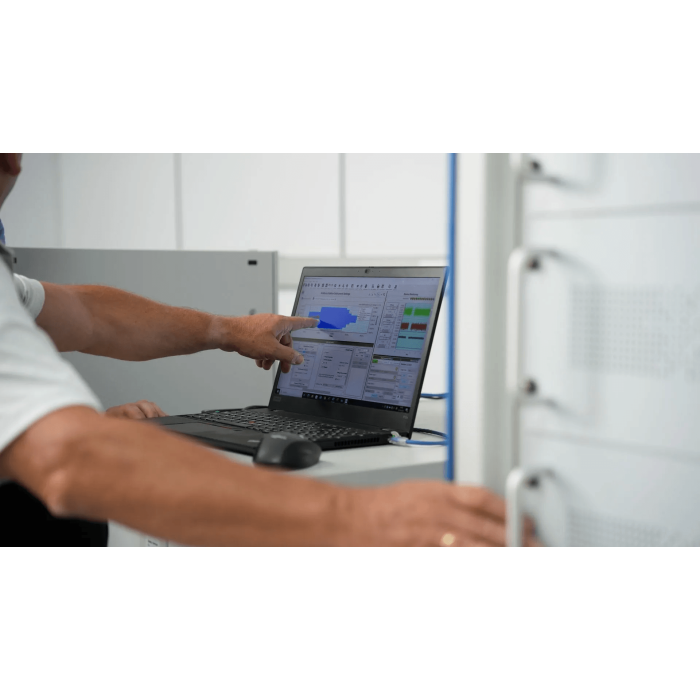

WaveMaster Software

Comprehensive Control over 4-Quadrant Amplifiers

WaveMaster Software is a powerful yet user-friendly solution for waveform generation and 4-Quadrant Amplifier control. It features an intuitive graphical waveform editor and tabular input capabilities that allow users to easily create both basic and complex waveforms. The software also enables seamless import of oscilloscope data, hardware trigger synchronization via TTL signals, and macro functions for automated testing. With USB-based control, users can efficiently manage amplifier settings including output configuration and operating voltage ranges.

The software integrates seamlessly into automated test systems through command libraries supporting multiple programming languages including LabView, Vector CANoe (CAPL), C#, C++, ANSI C, and Python. It comes with pre-configured standard libraries for popular test equipment such as LV124, VW 80000, LV148, VDA320, and compliance standards for GMW and JLR protocols, making it an ideal solution for automotive, industrial, and research applications requiring precise waveform control and synchronization.

Key Features:

• Easy to use graphical waveform editor and tabular input possibility
• Command library for integration into automated test systems:
  • LabView, Vector CANoe (CAPL), C#, C++, ANSI C, Python, etc.
• Waveform trigger caused by external TTL signal (rising edge) for synchronization
• Simulation of imported oscilloscope signals
• Macro function for execution of automated tests
