Z1007

This product is available in 5-7 weeks

Key Features

• Battery type: Lithium ion
• For use with: LR8450, LR8450-01, LR8530, LR8531, LR8532, LR8533, LR8534, LR3535, LR8536
• Replacement battery for: LR8410, LR8510, LR8511

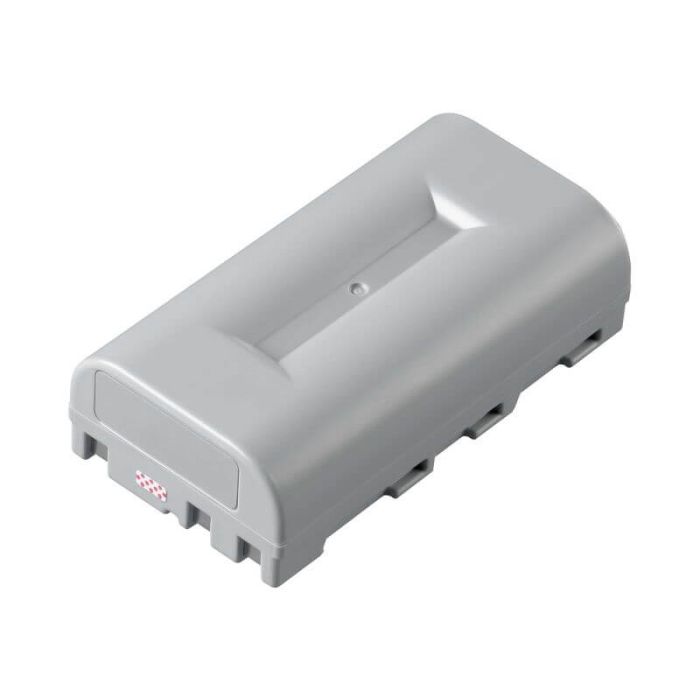

The Z1007 is a lithium-ion battery pack for data loggers and wireless logger modules of the HIOKI LR8450 series.
The batteries charge while installed in the data logger or one of the wireless modules. If a wireless module is powered via an AC adapter and the power supply is interrupted during a measurement, the wireless module will automatically switch to battery power.

The LR8450 and LR8450-01 data loggers can be equipped with either one or two Z1007 battery packs, while each wireless logger module requires one Z1007. Installing one Z1007 in a logger provides approximately 2 hours of measurement time on battery power, depending on the number of connected modules. Using two Z1007 packs roughly doubles the runtime to around 4 hours.

When a Z1007 is installed in a wireless logger module, the approximate runtimes are as follows:

• LR8530: 9 hours
• LR8531: 7 hours
• LR8532: 9 hours
• LR8533: 9 hours
• LR8534: 5 hours
• LR8535: 10 hours (5 hours when using two non-contact CAN sensors)
• LR8536: 5 hours
