LAPP Cable

Screened highly flexible data transmission cable with PVC outer sheath for power chain use

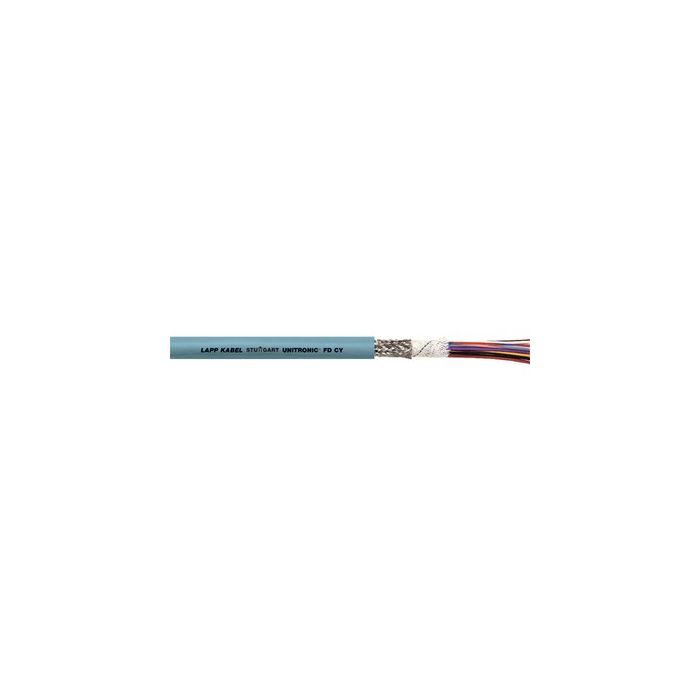

main product photo
UNITRONIC® FD CY: Low-frequency PVC data cable, highly flexible/ extra-finely wired, drag/ energy chain, constant flexing/ bending, screened, flame retardant
Contact us for lead time

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

Request a quote
More Information
Attribute Value
Product Brand Name UNITRONIC® FD CY
Approvals
  • Based on VDE 0812
Extended Description Benefits
  • Well-proven and reliable
  • Optimized cable construction for power chain use
  • Cost-effective solution
  • Overall braid minimises electrical interference
Applications
  • Automated production processes require data transmission cables that offer high flexibility and durability, as well as excellent screening
  • Suitable for use in measuring, control and regulating circuits
  • Assembly lines, production lines, in all kinds of machines
Features
  • Low-adhesive surface
  • Flame-retardant according IEC 60332-1-2
  • Designed for 2 up to 8 million bending/unbending cycles in power chain applications
Product make up
  • Extra-fine wire strand made of bare copper wires
  • Core insulation made of PVC
  • Non-woven wrapping
  • Tinned-copper braiding
  • Outer sheath made of PVC
  • Outer sheath colour: grey (RAL 7001)
Power Chain Yes
Interference rejecting Yes
Number of conductors 3
mm2 per conductor 0.14
Outer Diameter (mm) 4.5
Copper index kg per km 14.1
Technical Data Core identification code
  • DIN 47100
Conductor stranding
  • Stranded, extra-fine wire
Minimum bending radius
  • Flexing: 7.5 x outer diameter
  • Fixed installation: 4 x Outer diameter
Test voltage
  • 1500 V
Inductivity
  • approx. 0.65 mH/km
Temperature range
  • Flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C
Weight kg per km 37.0000
