Name: 0028044
Brand: LAPP Cable
SKU: 0028044
Price: 9999.99 GBP
Availability: OutOfStock

0028044

LAPP Cable

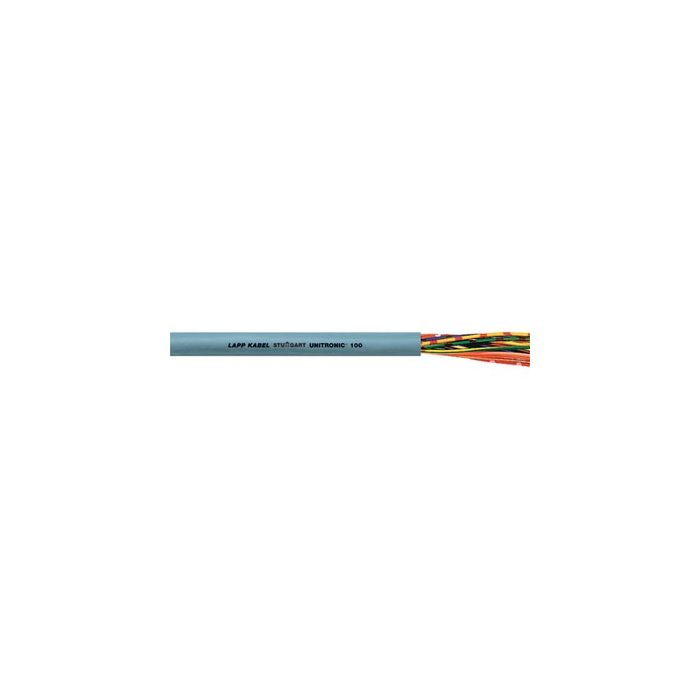

UNITRONIC® 100: Low-frequency PVC data cable, LAPP UNITRONIC® core identification code, Grey, Flame retardant, For various applications

Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.

More Information
Attribute	Value
Product Brand Name	UNITRONIC® 100
Approvals	Based on: VDE 0814 or VDE 0812
Extended Description	Benefits Robust, flexible and resistant outer sheath Small outer diameter Flame-retardant Applications These control and signal cables are used in the milliampere range for computer systems, electronic control equipment, office machines, balances etc. and wherever the thinnest possible control cables are required Features Flame-retardant according IEC 60332-1-2 Robust, flexible and resistant outer sheath Small outer diameter despite high number of cores 3 cores with earth wire (green-yellow) 2 cores (black/blue) Product make up Fine-wire/multi-wire (0.34 mm²) strand made of bare copper wires Core insulation made of PVC Outer sheath made of PVC Outer sheath colour: grey (RAL 7001)
Flame Retardant	Yes
Number of conductors	61
mm2 per conductor	0.25
Protective Conductor	Yes
Outer Diameter (mm)	13.3
Copper index kg per km	152.5
Technical Data	Core identification code UNITRONIC® colour codes Conductor stranding Stranded, fine-wire 0.34 mm²: 7-wire Minimum bending radius Occasional flexing: 15 x outer diameter Fixed installation: 4 x outer diameter Temperature range Occasional flexing: -5°C to +70°C Fixed installation: -40°C to +80°C
Weight kg per km	398.0000

More Information
Attribute	Value
Data Sheet	Click here to view
