Static screened installation cable for industrial electronics

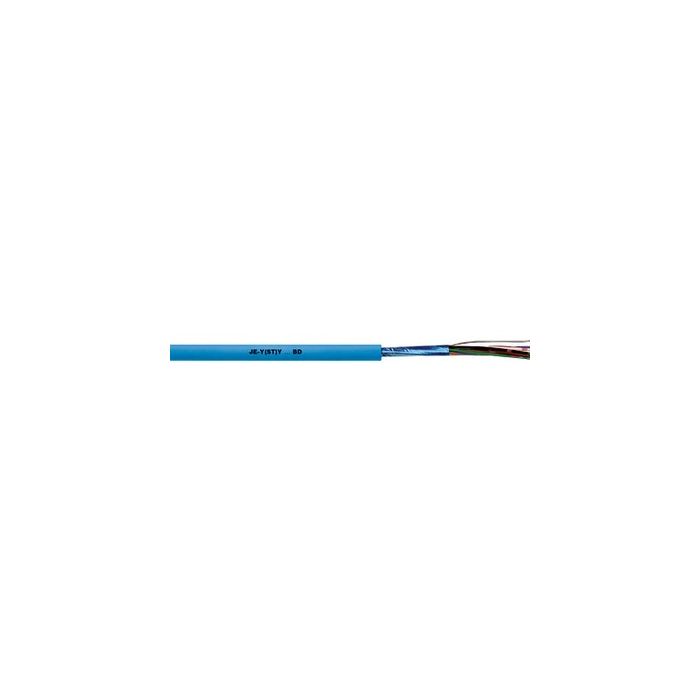

JE-Y(ST)Y…BD EB installation cable for industrial electronics, solid conductor/ stationary use, pairs, screened/ static foil, blue/ intrinsically safe circuits
Contact us for Lead Time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
0034126 Specifications
- The 2-pair version (2x2x0.8) is twisted into a star quad
- Flame-retardant according IEC 60332-1-2
- JE-Y(ST)Y...BD EB: For intrinsically safe circuits (type of protection i - intrinsic safety) according to IEC 60079-14:2013 / EN 60079-14:2014 / VDE 0165-1:2014, section 16.2.2
| Attribute | Value |
|---|---|
| Product Brand Name | JE-Y(ST)Y...BD EB |
| Approvals | In accordance with DIN VDE 0815type JE-Y(ST)Y...BD |
| Approvals |
|
| Extended Description |
Benefits
|
| Benefits | Perfect for cost-effective installation, e.g. connections with insulation displacement technology (IDC). | Aluminium-laminated plastic foil static screen with tin-plated drain wire minimises the interference of high frequency, electromagnetic fields | Decoupling of circuits by means of twisted-pair (TP) design (crosstalk effects) |
| Interference rejecting | Yes |
| Number of conductors | 32X2 |
| mm2 per conductor | 0.8 |
| Outer Diameter (mm) | 20 |
| Copper index kg per km | 327 |
| Core Identification Code | according to VDE 0815 |
| Test Voltage |
|
| Benefits |
|
| Product Make Up |
|
| Product Make Up | Solid bare copper conductor | Core insulation made of PVC | 2 cores twisted into a pair, and 4 pairs into units (for 2 x 2 x 0.8 as star quad cable) | Foil wrapping, static screening made of aluminium-laminated plastic film with copper drain wire | Outer sheath made of PVC | Outer sheath colour: sky blue (RAL 5015) |
| Test Voltage | Core/Core: 1000 V | Core/screen: 2000 V |
| Inductivity | approx. 0.65 mH/km |
| Core Identification Code HTML |
|
| Conductor Stranding | Single-wire (solid conductor) 0.8 mm: 0.50 mm² |
| Conductor Stranding HTML |
|
| Minimum Bending Radius | Fixed installation: 6 x outer diameter |
| Minimum Bending Radius |
|
| Temperature Range |
|
| Technical Data |
Core identification code
|
| Applications |
|
| Weight kg per km | 555 |
| Temperature Range | Occasional flexing: -5°C to +50°C | Fixed installation: -30°C to +70°C |
| Applications | Connection cable for fixed installation in industrial control systems, as required in measurement, control, signalling and data applications | Industrial electronics | For fixed installation on and under plaster, in dry and damp rooms |
| Features | The 2-pair version (2x2x0.8) is twisted into a star quad | Flame-retardant according IEC 60332-1-2 | JE-Y(ST)Y...BD EB: For intrinsically safe circuits (type of protection i - intrinsic safety) according to IEC 60079-14:2013 / EN 60079-14:2014 / VDE 0165-1:2014, section 16.2.2 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
