09100053105
09100053105
Harting

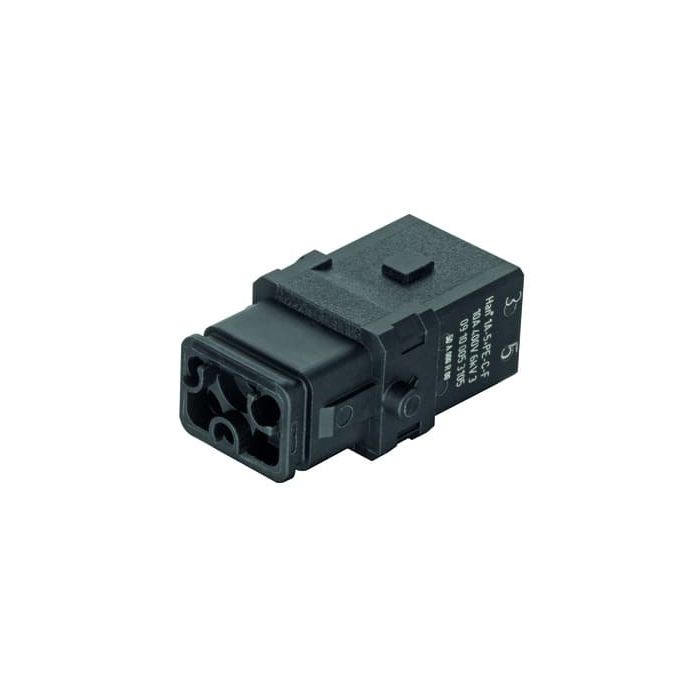

Han 1A-5+PE-c-f
Inserts, Crimp termination, Female, Polyamide (PA), RAL 9005 (jet black), Rated current:10 A, Size: 1 A, Contacts: 5, Conductor cross-section: 0.14...2.5 mm, Single locking lever
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 438 Han 1A |
| Product Family | Han 1A Female Insert |
| Product Brand Name | 09 10 005 3105 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han® 1A |
| Size | 1 A |
| Number of poles | 5.0000 |
| Insertion cycles minimum | 100.0000 |
| PE connection present ? | Yes |
| Rated voltage (V) | 400.0000 |
| Contact design | Socket |
| Rated_surge_voltage (V) | 6.0000 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | crimp connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 0.14…2.5 |
| Contact insert without contact ? | Yes |
| Fire resistance class | V0 |
| Standards | EN 45545-2 |
| Current Rating (A) | 10.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
