09110013001

09110013001

09110013001

Harting

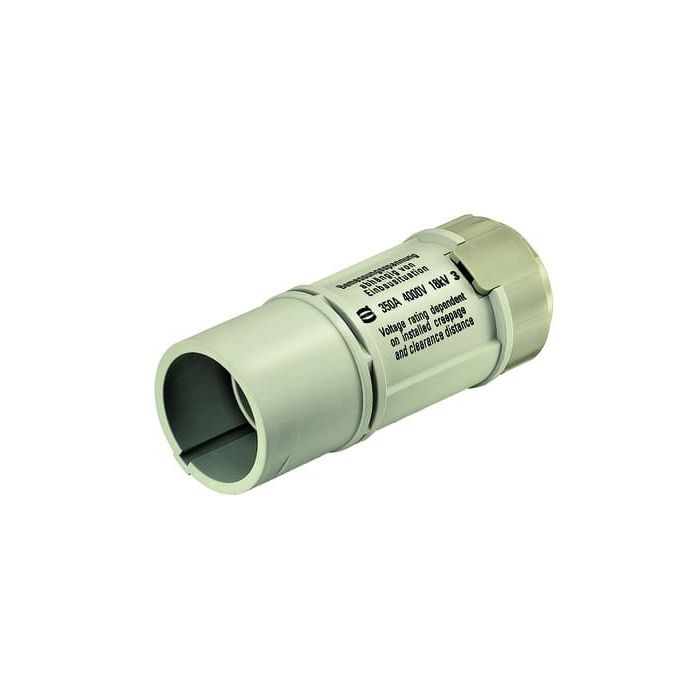

Han 1 HC-M-TC350

Inserts, Crimp termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current:350 A, Conductor cross-section: 25 ... 120 mm
In stock
£8.32
More Information
Attribute Value
Product Segment 424 Han® High Current Connector
Product Family Han HC Male Insert S
Product Brand Name 09 11 001 3001
Manufacturer HARTING
Customs tariff number 85389099
Quantity Min 1
Quantity Interval 1
Country of origin DE
Manufacturer's Brand Han® HC Modular
Insertion cycles minimum 500
Rated voltage (V) 2000
Contact design Pin
Rated_surge_voltage (V) 12
Wire protection present ? No
Insert material Thermoplast
Conductor connection method crimp connection
Pollution degree 3
Conductor cross-section mm2 25…120
Contact insert without contact ? Yes
Fire resistance class V0
Standards EN 60664-1
Current Rating (A) 350
More Information
Attribute Value
Data Sheet Click here to view
