09110013101
09110013101
Harting

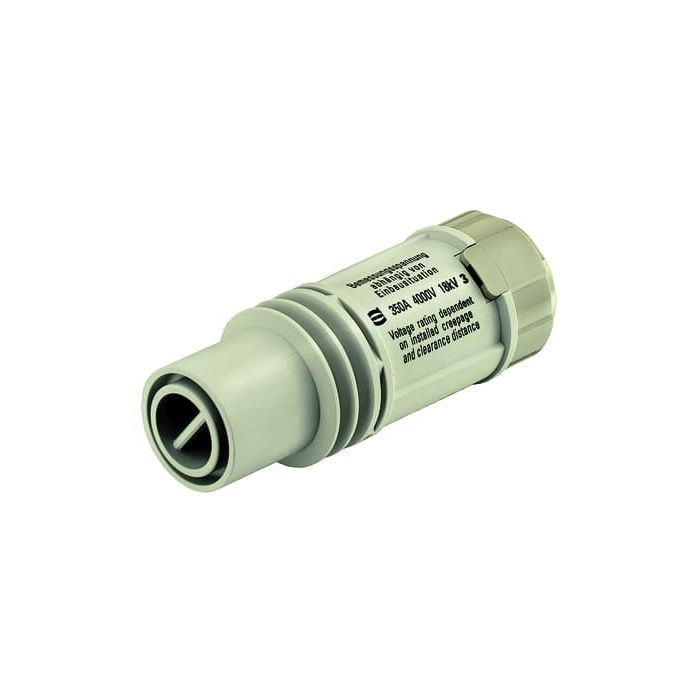

Han 1 HC-F-TC350
Inserts, Crimp termination, Female, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current:350 A, Conductor cross-section: 25 ... 120 mm
In stock
| Attribute | Value |
|---|---|
| Product Segment | 424 Han® High Current Connector |
| Product Family | Han HC Female Insert |
| Product Brand Name | 09 11 001 3101 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han® HC Modular |
| Insertion cycles minimum | 500 |
| Rated voltage (V) | 2000 |
| Contact design | Socket |
| Rated_surge_voltage (V) | 12 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | crimp connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 25…120 |
| Contact insert without contact ? | Yes |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 350 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
