09120113001
09120113001
Harting

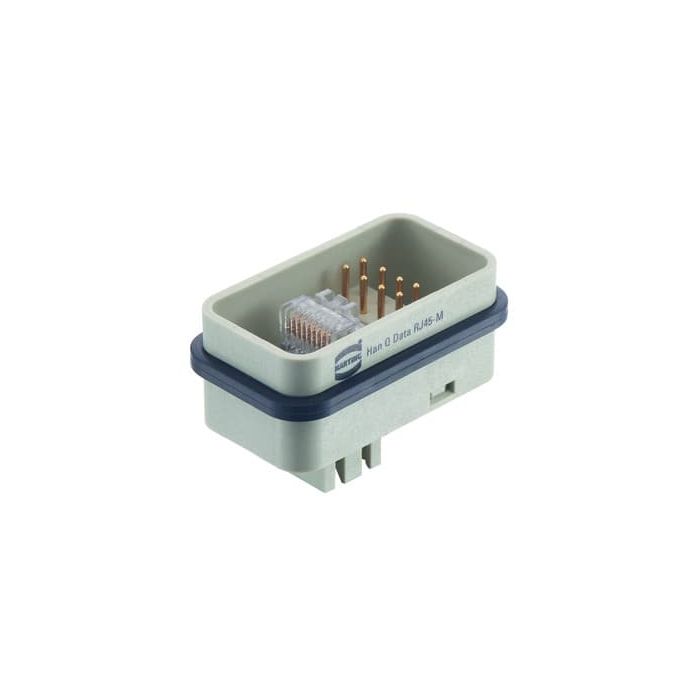

Han Q-Data RJ45-M
Inserts, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:5 A, Size: Han-Compact®, Contacts: 8, Conductor cross-section: 0.13...0.52 mm
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 408 Han® Q Connectors |
| Product Family | Han Q Male Insert |
| Product Brand Name | 09 12 011 3001 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han® Q |
| Size | Han-Compact® |
| Number of poles | 8.0000 |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | No |
| Rated voltage (V) | 50.0000 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 0.8 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | crimp connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 0.13…0.52 |
| Contact insert without contact ? | Yes |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 5.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
