09140012763
09140012763
Harting

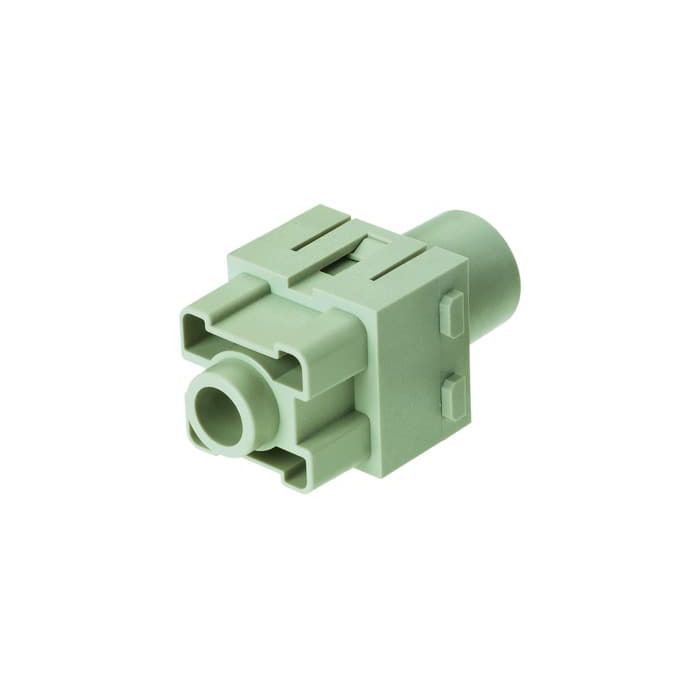

Han 200A axial module, female 25-40 mm
Han® 200 A module, Axial screw termination, Female, Contacts: 1, Conductor cross-section: 25...40 mm, Rated current:200 A, Polycarbonate (PC), RAL 7032 (pebble grey), Copper alloy, Silver plated
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Modules |
| Product Brand Name | 09 14 001 2763 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Modular® |
| Number of poles | 1.0000 |
| Material contact surface | Silver |
| Number of power contacts | 1.0000 |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | No |
| Rated voltage (V) | 1000.0000 |
| Contact type | Axial screw termination |
| Insulation stripped length (mm) | 16.0000 |
| Contact design | Socket |
| Rated_surge_voltage (V) | 8.0000 |
| Conductor connection method | Axial screw connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 25…25 |
| Contact insert material | Plastic |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 200.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
