09140063141
09140063141
Harting

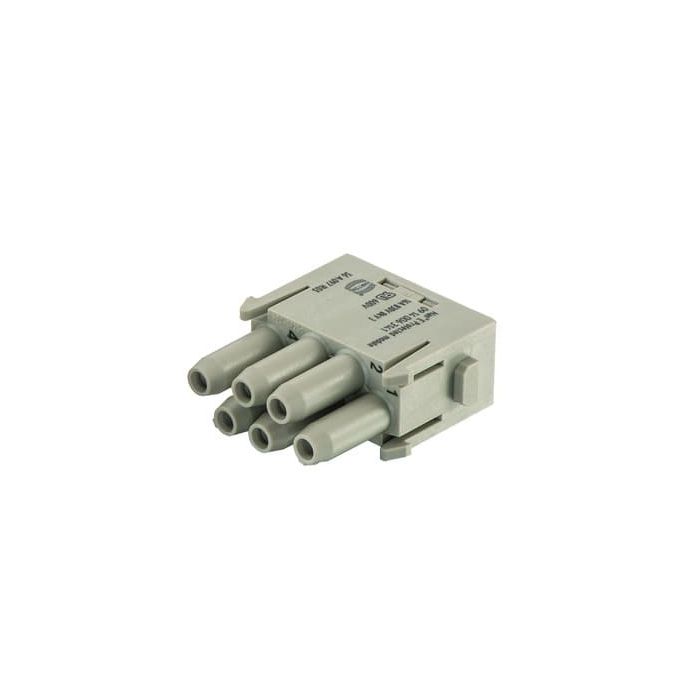

Han E Protected module, crimp female
Han E® Protected module, Crimp termination, Female, Contacts: 6, Conductor cross-section: 0.14...4 mm, Rated current:16 A, Polycarbonate (PC), RAL 7032 (pebble grey)
In stock
Attribute | Value |
---|---|
Product Segment | 407 Han-Modular® |
Product Family | Han-Modular Modules |
Product Brand Name | 09 14 006 3141 |
Manufacturer | HARTING |
Customs tariff number | 85366990 |
Quantity Min | 2 |
Quantity Interval | 2 |
Country of origin | DE |
Manufacturer's Brand | Han-Modular® |
Number of poles | 6 |
Number of power contacts | 6 |
Insertion cycles minimum | 500 |
Rated voltage (V) | 830 |
Contact type | Crimp termination |
Contact design | Socket |
Rated_surge_voltage (V) | 8 |
Conductor connection method | crimp connection |
Pollution degree | 3 |
Conductor cross-section mm2 | 0.14…0.14 |
Contact insert without contact ? | Yes |
Contact insert material | Plastic |
Fire resistance class | V0 |
Standards | EN 60664-1 |
Current Rating (A) | 16 |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
