09140083131
09140083131
Harting

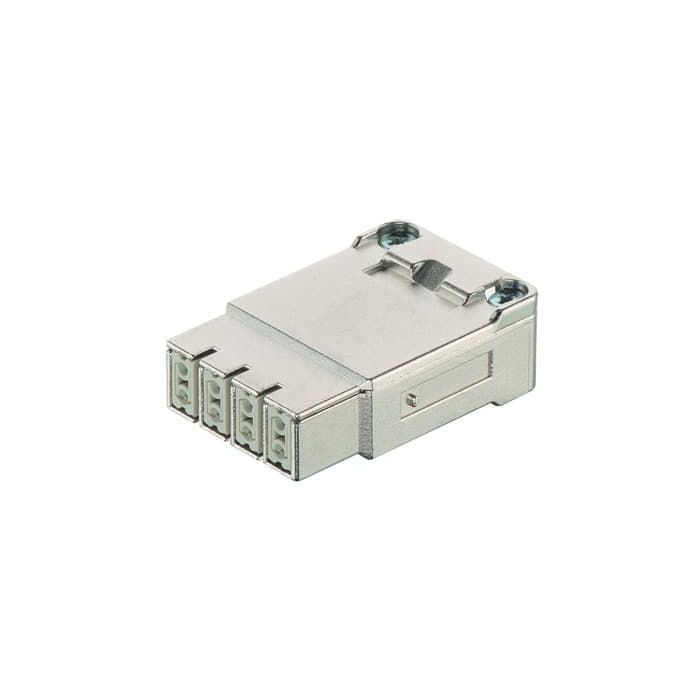

Han Gigabit insert F, Cat. 7
Crimp termination, Female, Contacts: 8, + shielding, Conductor cross-section: 0.09 ... 0.52 mm, Rated current:5 A, Polycarbonate (PC), RAL 7032 (pebble grey)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Modules |
| Product Brand Name | 09 14 008 3131 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Number of poles | 8.0000 |
| Insertion cycles minimum | 500.0000 |
| Rated voltage (V) | 50.0000 |
| Screen connection present ? | Yes |
| Contact type | Crimp termination |
| Contact design | Female |
| Rated_surge_voltage (V) | 0.8 |
| Wire protection present ? | No |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 0.09…0.52 |
| Contact insert without contact ? | Yes |
| Contact insert material | Plastic |
| Network category | 7A |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 5.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
