09140273013
09140273013
Harting

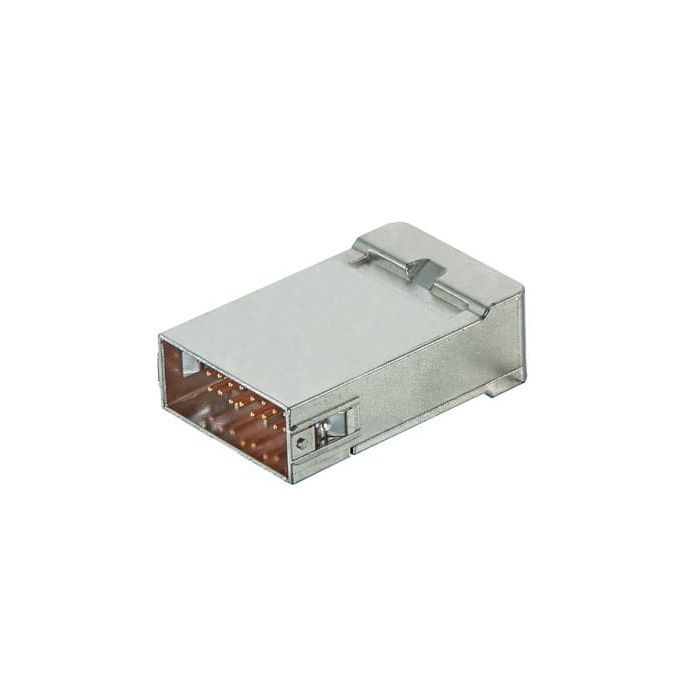

Han HD shielded module male
Han® High density shielded module, Crimp termination, Male, Contacts: 27, + shielding, Conductor cross-section: 0.13...0.33 mm, Rated current:2 A, Liquid crystal polymer (LCP)
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 407 Han-Modular® |
| Product Family | Han-Modular Modules |
| Product Brand Name | 09 14 027 3013 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | DE |
| Manufacturer's Brand | Han-Modular® |
| Number of poles | 27.0000 |
| Number of power contacts | 27.0000 |
| Insertion cycles minimum | 500.0000 |
| Rated voltage (V) | 16.0000 |
| Screen connection present ? | Yes |
| Contact type | Crimp termination |
| Contact design | Pin |
| Rated_surge_voltage (V) | 0.8 |
| Conductor connection method | crimp connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 0.13…0.13 |
| Contact insert without contact ? | Yes |
| Contact insert material | Plastic |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 2.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
