09200162812
09200162812
Harting

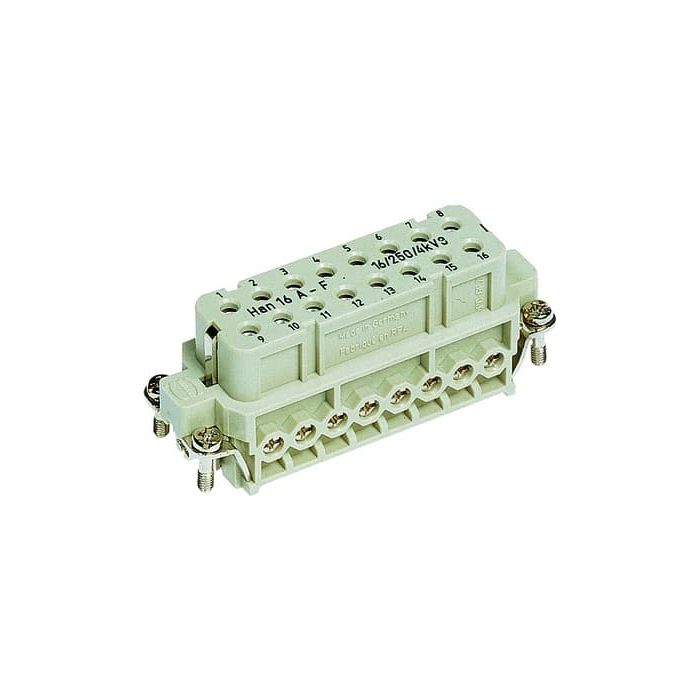

Han 16A-BU-S
Inserts, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:16 A, Size: 16 A, Contacts: 16, Conductor cross-section: 0.75...2.5 mm, Copper alloy, Silver plated
In stock
Attribute | Value |
---|---|
Product Segment | 421 Han A® |
Product Family | Han A Female Insert- |
Product Brand Name | 09 20 016 2812 |
Manufacturer | HARTING |
Customs tariff number | 85366990 |
Quantity Min | 1 |
Quantity Interval | 1 |
Country of origin | DE |
Manufacturer's Brand | Han A® |
Size | 16 A |
Number of poles | 16 |
Material contact surface | Silver |
Insertion cycles minimum | 500 |
PE connection present ? | Yes |
Rated voltage (V) | 250 |
Contact design | Socket |
Rated_surge_voltage (V) | 4 |
Wire protection present ? | No |
Insert material | Thermoplast |
Conductor connection method | Screw connection |
Pollution degree | 3 |
Conductor cross-section mm2 | 0.75…2.5 |
Material contact | Other copper alloys |
Fire resistance class | V0 |
Standards | EN 60664-1 |
Current Rating (A) | 16 |
Attribute | Value |
---|---|
Data Sheet | Click here to view |
