09320463011
09320463011
Harting

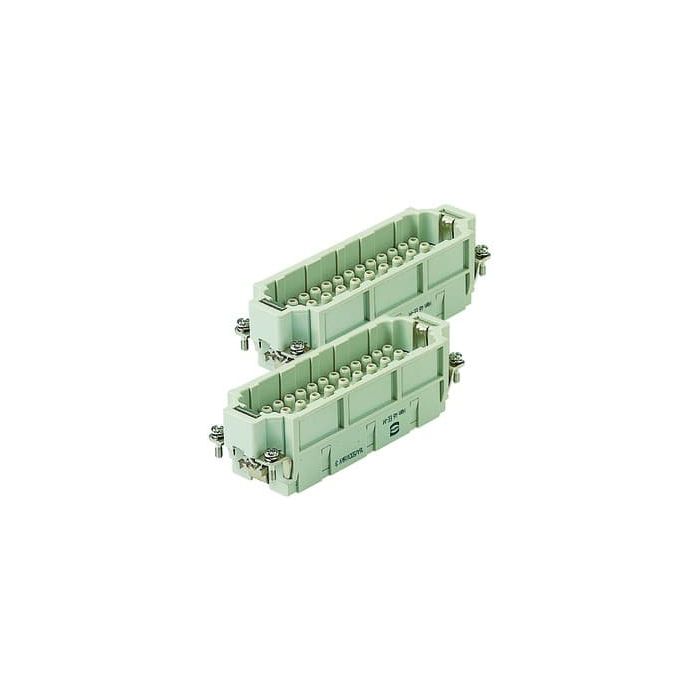

Han EE 46 Pos. Male Crimp Term. (47-92)
Inserts, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:16 A, Size: 48 B, Contacts: 92, Conductor cross-section: 0.14...4 mm
Contact us for lead time
Click below to request a quote for this item. Or for product advice, stock and lead time enquiries call our team on 0330 313 3220.
| Attribute | Value |
|---|---|
| Product Segment | 409 Han® EE |
| Product Family | Han EE Male Insert C |
| Product Brand Name | 09 32 046 3011 |
| Manufacturer | HARTING |
| Customs tariff number | 85389099 |
| Quantity Min | 1.0000 |
| Quantity Interval | 1.0000 |
| Country of origin | RO |
| Manufacturer's Brand | Han® EE |
| Size | 48 B |
| Number of poles | 92.0000 |
| Insertion cycles minimum | 500.0000 |
| PE connection present ? | Yes |
| Rated voltage (V) | 500.0000 |
| Contact design | Pin |
| Rated_surge_voltage (V) | 6.0000 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | crimp connection |
| Pollution degree | 3.0000 |
| Conductor cross-section mm2 | 0.14…4 |
| Contact insert without contact ? | Yes |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 16.0000 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
