Harting

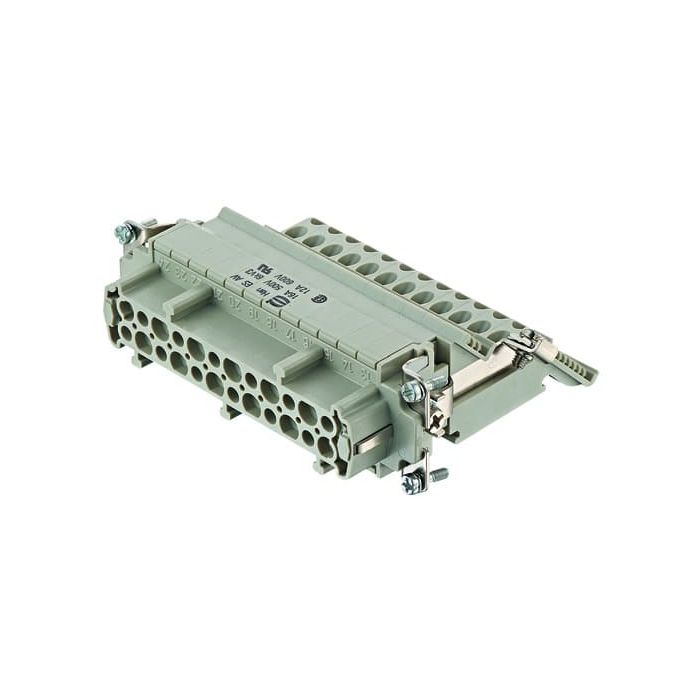

Han ES AV Pos. 24 Insert Term. Block rig
Inserts, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current:16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.14...2.5 mm, Copper alloy, Silver plated
In stock
| Attribute | Value |
|---|---|
| Product Segment | 481 Han® D AV/ E AV / ES AV |
| Product Family | Han Terminal Block C |
| Product Brand Name | 09 33 024 4739 |
| Manufacturer | HARTING |
| Customs tariff number | 85366990 |
| Quantity Min | 1 |
| Quantity Interval | 1 |
| Country of origin | DE |
| Manufacturer's Brand | Han® ES AV |
| Size | 24 B |
| Number of poles | 24 |
| Material contact surface | Silver |
| Insertion cycles minimum | 500 |
| PE connection present ? | Yes |
| Rated voltage (V) | 500 |
| Contact design | Socket |
| Rated_surge_voltage (V) | 6 |
| Wire protection present ? | No |
| Insert material | Thermoplast |
| Conductor connection method | Spring pulley connection |
| Pollution degree | 3 |
| Conductor cross-section mm2 | 0.14…2.5 |
| Material contact | Other copper alloys |
| Fire resistance class | V0 |
| Standards | EN 60664-1 |
| Current Rating (A) | 16 |
| Attribute | Value |
|---|---|
| Data Sheet | Click here to view |
