Hummel 7.001.903.108 Inserts 3-pole with dip solder

7.001.903.108

7.001.903.108

Hummel

Inserts 3-pole with dip solder

7.001.903.108 - Inserts 3-pole with dip solder Also known as 7001903108. White. Minimum mating cycles : > 1000
In stock
£6.20
More Information
Attribute Value
Product Brand Name 7001903108
Manufacturer Hummel
Additional Description
  • Characteristic of connection : Dip-solder (PCB)
  • Color contact insert : White
  • Contact-Ø signal [mm] : 1
  • Degree of Protection : 3
  • Dip solder contacts length [mm] : 10
  • Flammability CE : V-0 (UL 94)
  • Insert : Socket
  • Insulation resistance signal : > 10^10
  • Material insulating body : PA 6, PBT
  • Max. contact resistance signal : 3
  • Nominal voltage at degree of pollution 3 signal : 400
  • Nominal current signal : 8
  • Number of contacts power : 3
  • Number of poles : 3

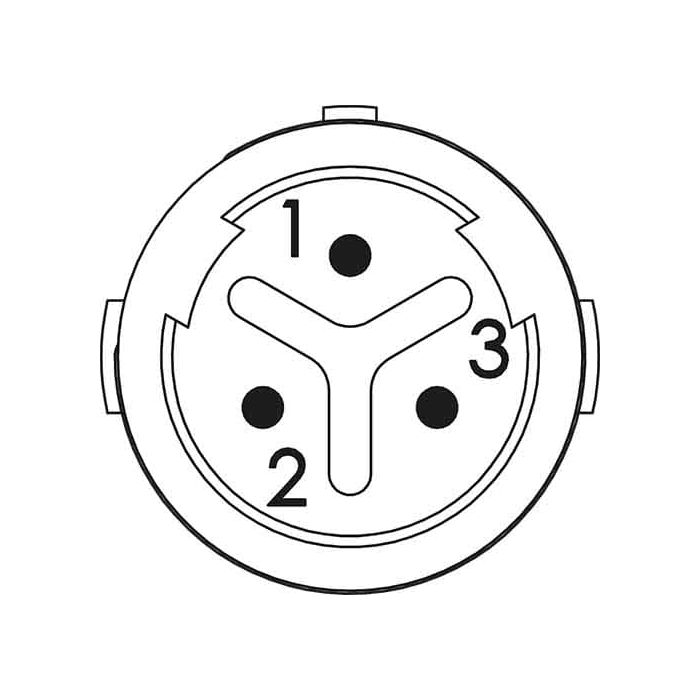

  • Pole picture : 3
  • Temperature range : -40°C to +125°C
  • Test voltage signal [v-] : 2500
Colour White
Weight (kg) 0.00415
Customs tariff number 85366930
EAN code 4033878500200
ETIM 7 EC003557
Packaging Unit 50
Characteristic of connection Dip-solder (PCB)
Number of poles 3
Insert Socket
Signal contact diameter (mm) 1
Minimum mating cycles > 1000
Insulating body material PA 6, PBT
Number of power contacts 3
Degree of protection 3
Pole picture 3
Contact diameter 1 mm
Nominal current signal A 8
Nominal voltage at_degree of pollution 3 signal (V) 400
Test voltage signal (V) 2500
Insulation resistance signal (Ohm) > 10^10
Max contact resistance signal (mOhm) 3
Dip solder contacts length mm 10
Flammability V-0 (UL 94)
Temperature Range -40°C to +125°C
More Information
Attribute Value
Data Sheet Click here to view
